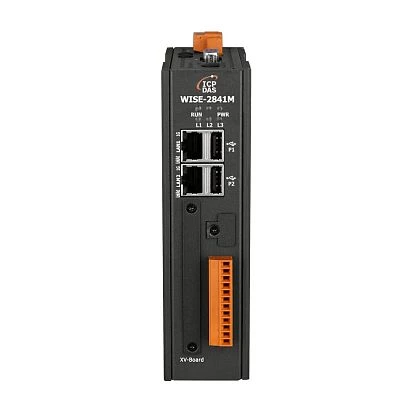

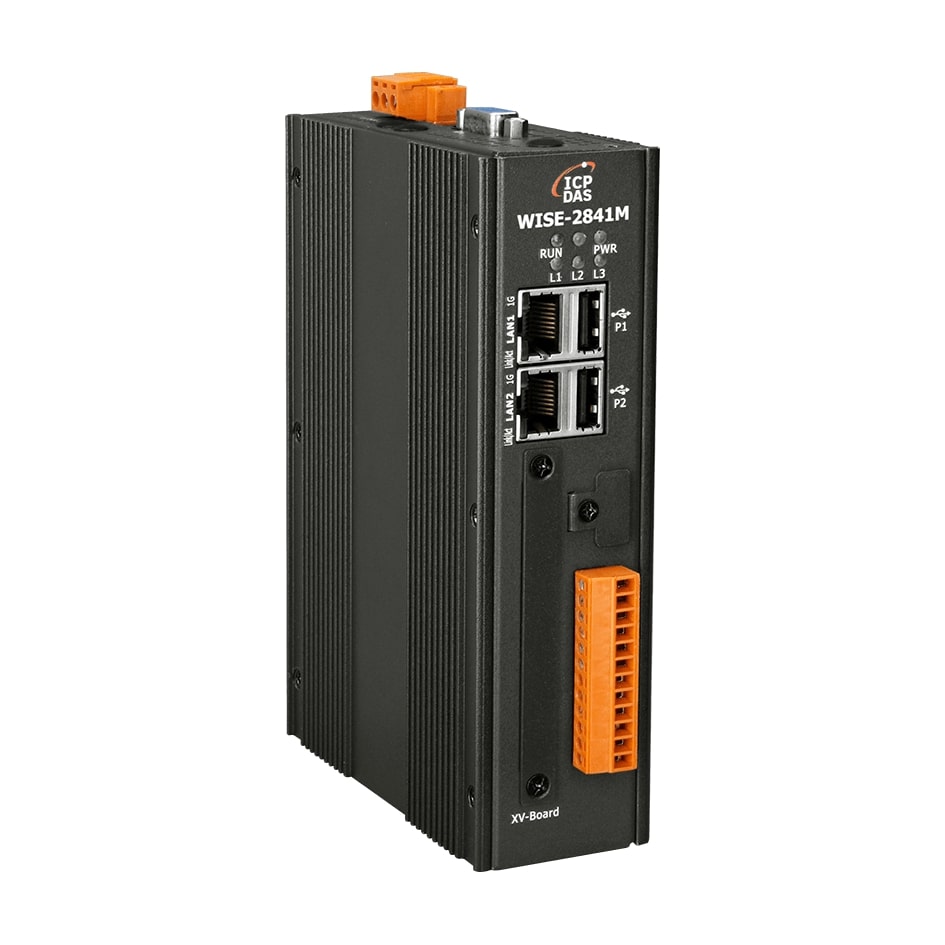

WISE-2841M
ICP DAS
SKU: 10028700
IIoT Web Controller with Quad-core ARM CPU, 1.6 GHz, 4GB MicroSD, 2xGbE LAN, 4xCOM, 12...48VDC-in, -25...+75C
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration

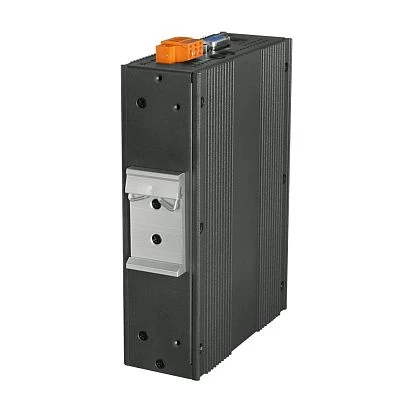

DIN-Rail mount, Wall
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
1.6 GHz
Memory
Default on Board Memory
1 GB
Installed drive
Flash Memory Capacity
8 MB
1st Storage Capacity
4 GB
Drive interfaces
MicroSD
1
MicroSDHC
1
Expansion Module
Supported Module
XV - board, I-7000/M-7000 series, ET-7000/PET-7000
Software
Programming Method
IF-THEN-ELSE Logic Rules
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
1
RS-485
2
Supported Protocols
Industrial Protocols
Modbus TCP, Modbus RTU
Graphic
Interfaces

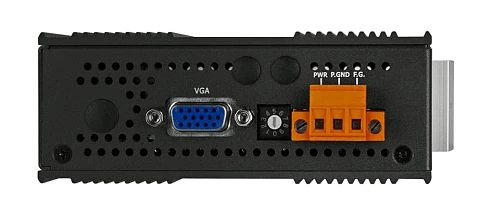

VGA
Dimensions and weight
Width
44 mm
Depth
129 mm
Height
164 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
0.28 kg
