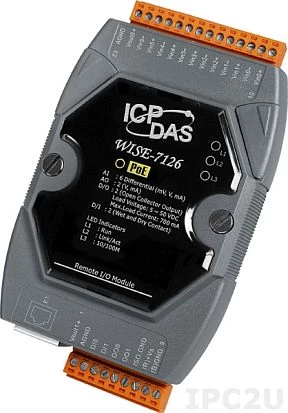

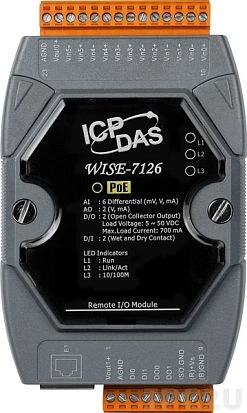

WISE-7126
ICP DAS
SKU: 05548000
6-channel Analog Input, 2-channel Analog Output, 2-channel Digital Input And 2-channel Digital Output WISE PoE Controller, RoHS
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
16-bit
Memory
SRAM
512 kB
Installed drive
Flash Memory Capacity
0.512 MB
EEPROM Memory Capacity
16 kB
Software
Programming Method
IF-THEN-ELSE Logic Rules
Analog Input
Total channels of analog input
6
Differential channels
6
Number of Bits
16 Bit
Sampling rate
10 Hz
Current range
0...20 mA, 4...20 mA, -20...+20 mA
Voltage range
+/-500 mV, +/-1 V, +/-5 V, +/-10 V
Analog Output
Channels of analog input
2
DAC Bit Rate
12 Bit
Current range
0...20 mA, 4...20 mA
Voltage range
0...5 V, 0...10 V, +/-5 V, +/-10 V
Digital Input
Total channels of digital input
2
Type
Dry contact, Wet contact
Sink/Source
Dry: Source, Wet: Sink/Source
Level of Logic "0"
3.5~30 V
Level of Logic "1"
0~1 V
Counter
50Hz, 16 bit
Digital Output
Total channels of digital output
2
Type
Open collector
Max. load current
700 mA
Output voltage
5~50 V
Additional Functions
Watchdog timer type
Hardware
Supported Protocols
Industrial Protocols
Modbus TCP server
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
0.28 kg
