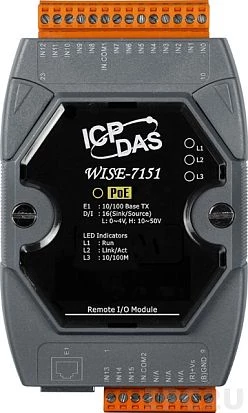

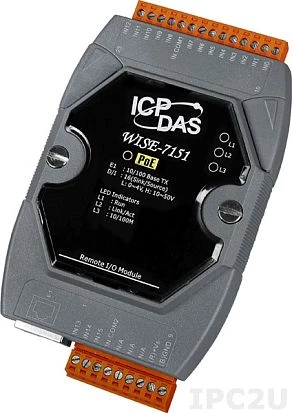

WISE-7151
ICP DAS
SKU: 05590800
16-channel Isolated Digital Input WISE PoE Controller (RoHS)
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
16-bit
Memory
SRAM
512 kB
Installed drive
Flash Memory Capacity
0.512 MB
EEPROM Memory Capacity
16 kB
Software
Programming Method
IF-THEN-ELSE Logic Rules
Digital Input
Total channels of digital input
16
Type
Wet contact
Sink/Source
Sink, Source
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Counter
50Hz, 16 bit
Additional Functions
Watchdog timer type
Hardware
Supported Protocols
Industrial Protocols
Modbus TCP server
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
0.28 kg
