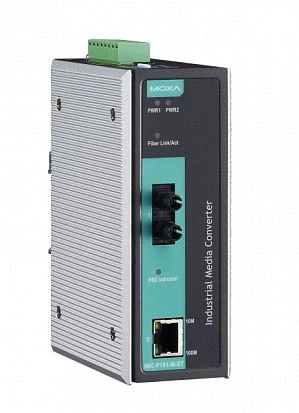

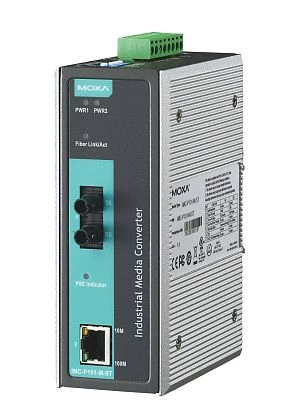

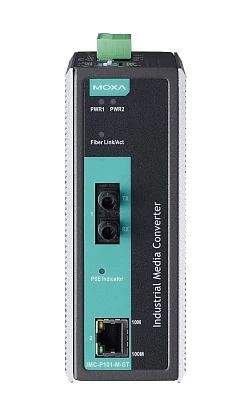

IMC-P101-M-ST
MOXA
SKU: 05595600
PoE industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode port with ST connector, 0 to 60°C operating temperature
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
PoE 10/100 Mbit/s
1
Type 10/100 Mbit/s
RJ-45, ST
Fiber
Type of Fibre Optic
multi-mode
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX
Switch Properties
Supported functions
Automatic power failure notification, Link Fault Pass-Through (LFP), Power Remote Reset
LED / Controls
LED
10/100M LED, PWR1, PWR2, LNK/ACT LED, PSE LED
Setup of Operation Mode
By Switches
System Power Input
Input Voltage DC
46..57 V
Power Supply Reserve input Voltage DC
46..57 V
Operating Conditions
Operating Temperature
0..60 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
144.5 mm
Depth
51.7 mm
Height
122.3 mm
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-9, EN 61000-4-11, EN 55032
Freefall
IEC 60068-2-32
Safety
UL 508
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Gross Weight
0.71 kg
Ethernet
Total Ethernet
