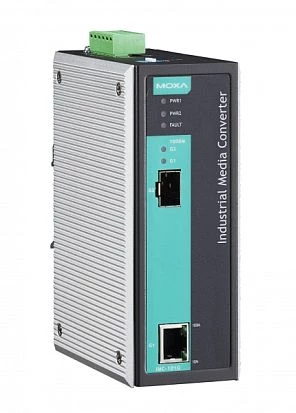

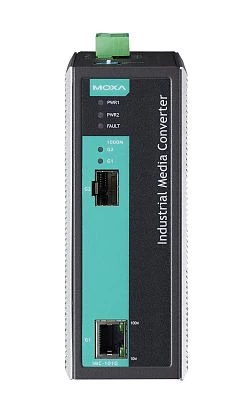

IMC-101G-IEX
MOXA
SKU: 66390600
Industrial Giga Media Converter, 10/100/1000BaseT(X) to 1000BaseSX/LX/LHX/ZX, 0 to 60C operating temperature, IECEx Certification Approval
Price on request
Available on order
Available on order
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
1
SFP 100/1000 Mbit Ports
1
Type 10/100/1000 Mbit/s
RJ-45
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Switch Properties
Supported functions
Automatic power failure notification, Automatic port failure notification, Link Fault Pass-Through (LFP)
Expansion Module
Supported Module
SFP-1G
LED / Controls
LED
FAULT LED, 10/100/1000M LED, PWR1, PWR2
Setup of Operation Mode
By Switches
System Power Input
Input Voltage DC
12..45 V
Power Supply Reserve input Voltage DC
12..45 V
Operating Conditions
Operating Temperature
0..60 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
53.6 mm
Depth
105 mm
Height
135 mm
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 55032
Explosion safety
IECEx
Freefall
IEC 60068-2-32
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc
Safety
UL 508
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Gross Weight
0.93 kg
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
1
SFP 100/1000 Mbit Ports
1
Type 10/100/1000 Mbit/s
RJ-45
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Switch Properties
Supported functions
Automatic power failure notification, Automatic port failure notification, Link Fault Pass-Through (LFP)
Expansion Module
Supported Module
SFP-1G
LED / Controls
LED
FAULT LED, 10/100/1000M LED, PWR1, PWR2
Setup of Operation Mode
By Switches
System Power Input
Input Voltage DC
12..45 V
Power Supply Reserve input Voltage DC
12..45 V
Operating Conditions
Operating Temperature
0..60 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
53.6 mm
Depth
105 mm
Height
135 mm
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 55032
Explosion safety
IECEx
Freefall
IEC 60068-2-32
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc
Safety
UL 508
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Gross Weight
0.93 kg
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
1
SFP 100/1000 Mbit Ports
1
Type 10/100/1000 Mbit/s
RJ-45
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Switch Properties
Supported functions
Automatic power failure notification, Automatic port failure notification, Link Fault Pass-Through (LFP)
Expansion Module
Supported Module
SFP-1G
LED / Controls
LED
FAULT LED, 10/100/1000M LED, PWR1, PWR2
Setup of Operation Mode
By Switches
System Power Input
Input Voltage DC
12..45 V
Power Supply Reserve input Voltage DC
12..45 V
Operating Conditions
Operating Temperature
0..60 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
53.6 mm
Depth
105 mm
Height
135 mm
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 55032
Explosion safety
IECEx
Freefall
IEC 60068-2-32
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc
Safety
UL 508
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Gross Weight
0.93 kg
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
1
SFP 100/1000 Mbit Ports
1
Type 10/100/1000 Mbit/s
RJ-45
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Switch Properties
Supported functions
Automatic power failure notification, Automatic port failure notification, Link Fault Pass-Through (LFP)
Expansion Module
Supported Module
SFP-1G
LED / Controls
LED
FAULT LED, 10/100/1000M LED, PWR1, PWR2
Setup of Operation Mode
By Switches
System Power Input
Input Voltage DC
12..45 V
Power Supply Reserve input Voltage DC
12..45 V
Operating Conditions
Operating Temperature
0..60 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
53.6 mm
Depth
105 mm
Height
135 mm
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 55032
Explosion safety
IECEx
Freefall
IEC 60068-2-32
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc
Safety
UL 508
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Gross Weight
0.93 kg
