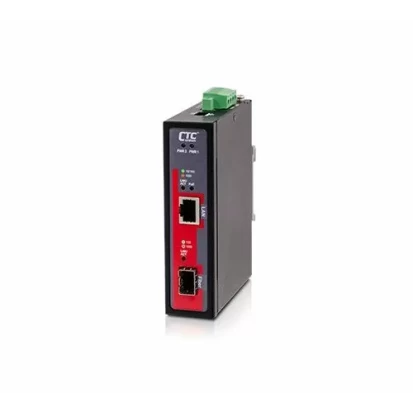

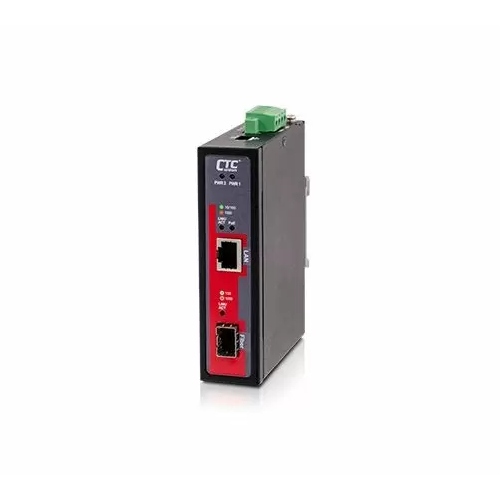

IMC-1000S-PB
CTC Union
SKU: 80170400
Industrial Unmanaged Gigabit Ethernet Media Converter, IP30, 10/100/1000 Base-T to 100/1000 Base-X SFP port with PoE, 44..57 VDC input power, -20.. 70C Operating Temperature
Price on request
Available
Available
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
SFP 100/1000 Mbit Ports
1
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3bt for Power over Ethernet
Switch Properties
Jumbo Frame Size
16 kB
System Power Input
Input Voltage DC
44..57 V
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
5-95%
Construction
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
85 mm
Depth
30 mm
Height
115 mm
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
EMS
EN 55032, EN 55035
Freefall
IEC 60068-2-31
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.62 kg
Gross Weight
1.2 kg
