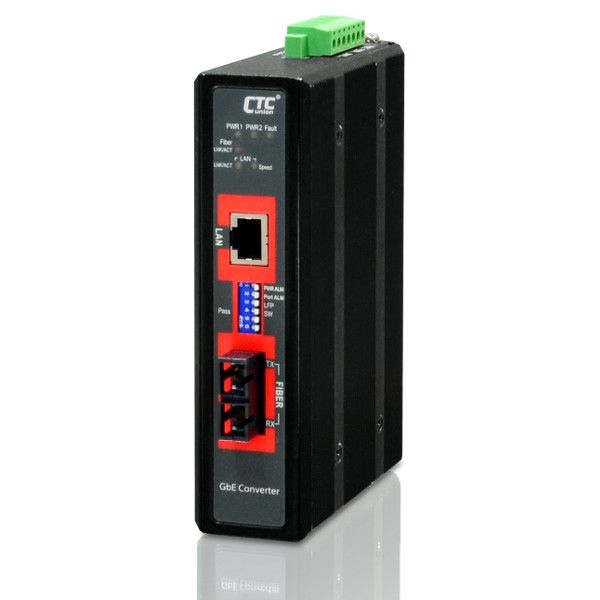

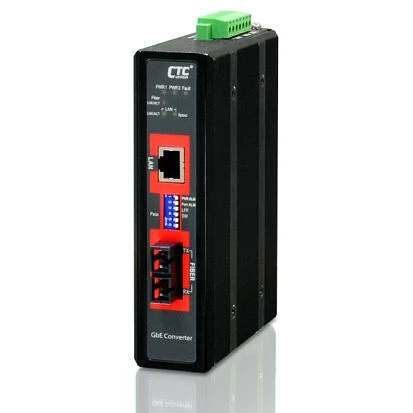

IMC-1000-PHE12-SC001
CTC Union
SKU: 56039500
Industrial Unmanaged Gigabit PoE Media Converter 10/100/1000 Base-T to 100/1000 Base-X Fiber Optics Multi-mode SC port, Distance 500m, Redundant dual 12/24/48VDC input power, -20.. 75C Operating Temperature
Price on request
Available on order
Available on order
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
PoE+ 10/100/1000 Mbit/s
1
Type 10/100/1000 Mbit/s
RJ-45, SC
Fiber
Type of Fibre Optic
multi-mode
Digital Output
Total channels of digital output
1
Type
Signal Relay
LED / Controls
LED
FAULT LED, PoE LED, 10/100/1000M LED, PWR1, PWR2, LNK/ACT LED
Connectors
Connectors
DC input (terminal block)
System Power Input
Input Voltage DC
9..57 V
Power Supply Reserve input Voltage DC
9..57 V
Operating Conditions
Operating Temperature
-20..75 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
38.6 mm
Depth
106 mm
Height
142 mm
Standards and Certifications
Certifications
CE
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-8, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-2, EN 61000-6-4
Freefall
IEC 60068-2-32
Rolling Stock
EN 50121-4
Safety
UL 60950-1
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.66 kg
Gross Weight
1.2 kg
