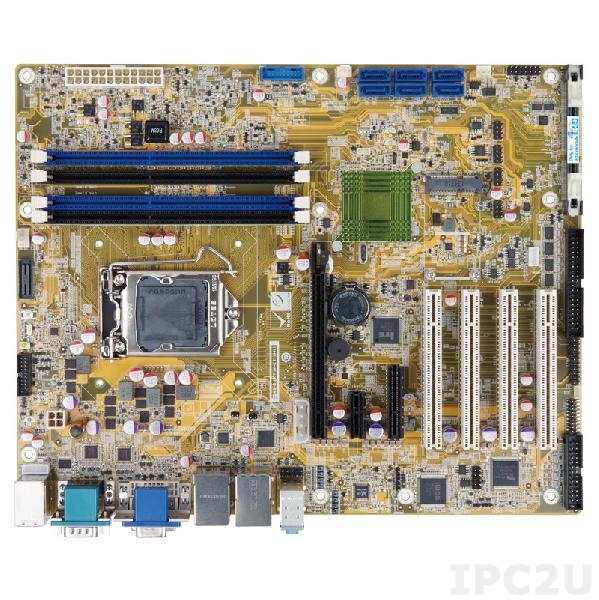

IMBA-Q870-i2

IMBA-Q870-i2

IEI
SKU: 06468300
ATX motherboard supports LGA1150 Intel Core i7/i5/i3/Pentium/Celeron CPU, 240-pin DDR3 1600/1333MHz, VGA,HDMI,DVI-I,iDP,6xCOM,LPT,12xUSB,6xSATA 6Gb/s,mSATA,PCIe x16,PCIe x1,PCIe x4,4xPCI,2xLAN
Price on request
Available
Available

System Architecture
Form Factor
ATX
CPU
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Socket
LGA1150
Chipset
Chipset
Intel Q87
Memory
Form-factor
DDR3, DDR3L
Socket Type
4xDIMM
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in Chipset
Ethernet
Controller Type
Intel i217LM 10/100/1000 Mbps, Intel i210-AT
Total Ethernet
2
Interfaces
COM Total
6
RS-232
5
RS-422/485
1
USB Total
12
USB 2.0
8
USB v3.x
4
Audio
Audio Controller
Realtek ALC662 HD
Drive interfaces
mSATA
1
Extension Slots
Total
7
PCI Express x16
1
PCI Express x4
1
PCI Express x1
1
PCI
4
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
10-pin DIO, TPM, 4-pin (12V DC CPU), 24-pin ATX, 1x4-pin RS-422/485, 26-pin LPT, 4x10-pin RS-232, 6x4-pin USB 2.0, iDP, 6-pin KB/MS
Connectors
DB9, DVI-D, DB15 VGA, HDMI, PS/2 Keyboard/Mouse, 2xRJ45 Ethernet, 6xUSB, Audio
Dimensions and weight
Width
305 mm
Length
244 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1.2 kg
