IMBA-Q370

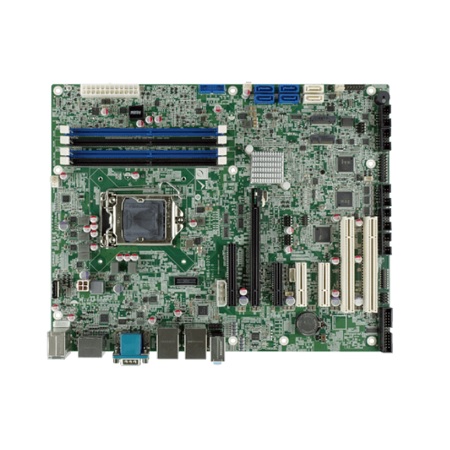

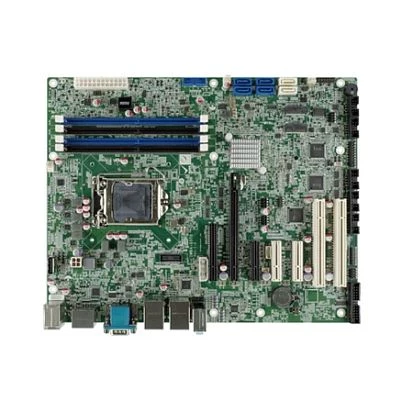

IMBA-Q370

IEI
SKU: 08024800
ATX MB supports Intel, Celeron, Core i3/i5/i7 8th Gen, LGA1151, Q370, 4xDDR4 2133MHz up to 64 Gb, DP++, VGA, HDMI, COM, 6xUSB, 6xSATA III RAID 0/1/5/10, 2xLAN, 2xPCIe x8, 3xPCIe x4, 2xPCI, 2xM.2, Audio, AT/ATX
Price on request
Available
Available

System Architecture
Form Factor
ATX
CPU
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Socket
LGA1151
Chipset
Chipset
Intel Q370
Memory
Form-factor
DDR4
Socket Type
2xDIMM
Maximum Memory
64 GB
Graphic
Graphic Controller
Intel Gen9 Graphic engine
Interfaces
DisplayPort, HDMI, VGA
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
5
RS-232
3
RS-232/422/485
2
USB Total
12
USB 2.0
6
USB v3.x
6
Audio
Audio Controller
Realtek ALC662
Drive interfaces
RAID Levels
1, 5, 10
Extension Slots
Total
9
PCI Express x8
2
PCI Express x4
3
M.2
2
PCI
2
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
4xUSB 2.0, 6x10-pin RS-232, 6-pin KB/MS, 3x5-pin RS-232, 2x10-pin RS-232/422/485, 2xUSB 3.0
Connectors
PS/2 Keyboard/Mouse, 6xUSB, Console Port RS-232 (DB9M), SMBus Power Output
Dimensions and weight
Width
244 mm
Length
305 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
1.02 kg
Gross Weight
1.02 kg
