IMBA-H810

IMBA-H810

IEI
SKU: 06822000

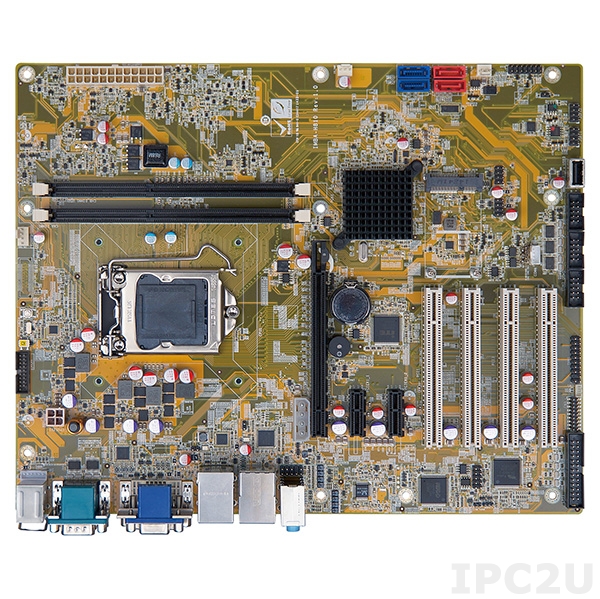

ATX Motherboard, LGA1150, Intel 4th Gen Core i7/i5/i3/Pentium/Celeron CPU, Intel H81, Up to 16GB DDR3 ECC/Non-ECC RAM, VGA/DVI-D/iDP, 2xGbE LAN, 3xCOM, 2xUSB 3.2, 7xUSB 2.0, 8-bit DIO, 2xPS/2, 4xSATA, Audio, MiniPCIe, 1xPCIe x16, 2xPCIe x1, 4xPCI
Price on request
Available
Available

System Architecture
Form Factor
ATX
CPU
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Socket
LGA1150
Chipset
Chipset
Intel H81
Memory
Form-factor
DDR3
Socket Type
2xDIMM
Maximum Memory
16 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DVI-D, VGA
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i218-V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
5
RS-422/485
1
USB Total
9
USB 2.0
7
USB v3.x
2
LPT
LPT
Audio
Audio Controller
Realtek ALC662
Drive interfaces
mSATA
1
Extension Slots
Total
8
PCI Express x16
1
PCI Express x1
2
Mini-PCIe/Mini Card
1
PCI
4
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xSATA 2, 2xSATA 3, TPM, 24-pin ATX, 4-pin SMBus, 1x4-pin RS-422/485, 26-pin LPT, 3x10-pin RS-232, 4x4-pin USB 2.0, iDP, 4-pin ATX
Connectors
2xDB9, DVI-D, DB15 VGA, PS/2 Mouse, PS/2 Keyboard, 2xRJ45 Ethernet, 4xUSB, Audio (in/out/Mic)
Dimensions and weight
Width
305 mm
Length
244 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1.05 kg
System Architecture
Form Factor
ATX
CPU
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Socket
LGA1150
Chipset
Chipset
Intel H81
Memory
Form-factor
DDR3
Socket Type
2xDIMM
Maximum Memory
16 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DVI-D, VGA
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i218-V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
5
RS-422/485
1
USB Total
9
USB 2.0
7
USB v3.x
2
LPT
LPT
Audio
Audio Controller
Realtek ALC662
Drive interfaces
mSATA
1
Extension Slots
Total
8
PCI Express x16
1
PCI Express x1
2
Mini-PCIe/Mini Card
1
PCI
4
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xSATA 2, 2xSATA 3, TPM, 24-pin ATX, 4-pin SMBus, 1x4-pin RS-422/485, 26-pin LPT, 3x10-pin RS-232, 4x4-pin USB 2.0, iDP, 4-pin ATX
Connectors
2xDB9, DVI-D, DB15 VGA, PS/2 Mouse, PS/2 Keyboard, 2xRJ45 Ethernet, 4xUSB, Audio (in/out/Mic)
Dimensions and weight
Width
305 mm
Length
244 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1.05 kg
