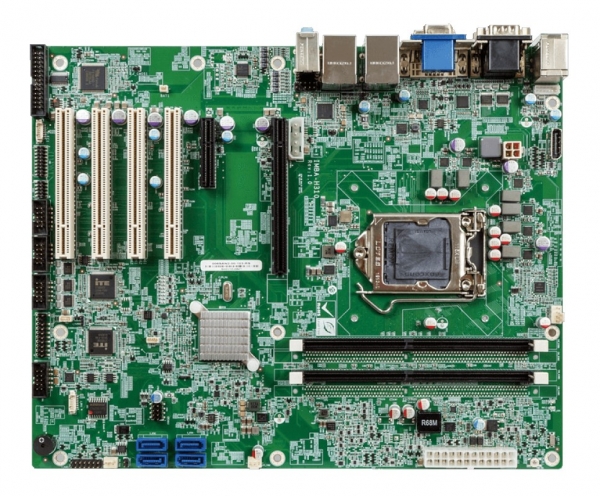

IMBA-H310
IEI
SKU: 09186500
ATX motherboard supports, H310, LGA1151 socket for 8th/9th Gen. Core i9/i7/i5/i3/Celeron/Pentium, DDR4, VGA, DVI-D, DP, 2xGbE LAN, 6xCOM, 4xUSB 3.2, 4xUSB 2.0, 4xPCI, 1xPCIe x16, 1xPCIe x4, 4xSATA-600, DIO, Audio
Price on request
Available
Available
System Architecture
Form Factor
ATX
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Core i9, Pentium
Socket
LGA1151
Chipset
Chipset
Intel H310
Memory
Form-factor
DDR4
Socket Type
2xDIMM
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in Chipset
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
5
RS-232/422/485
1
USB Total
8
USB 2.0
4
USB v3.x
4
Audio
Audio Controller
Realtek ALC662
Extension Slots
Total
6
PCI Express x16
1
PCI Express x4
1
PCI
4
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
4xCOM, LPT, 4xSATA 3, 4-pin (12V DC CPU), 24-pin ATX, Display port
Connectors
2xDB9, DVI-D, DB15 VGA, PS/2 Keyboard/Mouse, 2xRJ45 Ethernet, 6xUSB, Mic In, Line In, Line Out
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
244 mm
Length
305 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Gross Weight
1.25 kg
