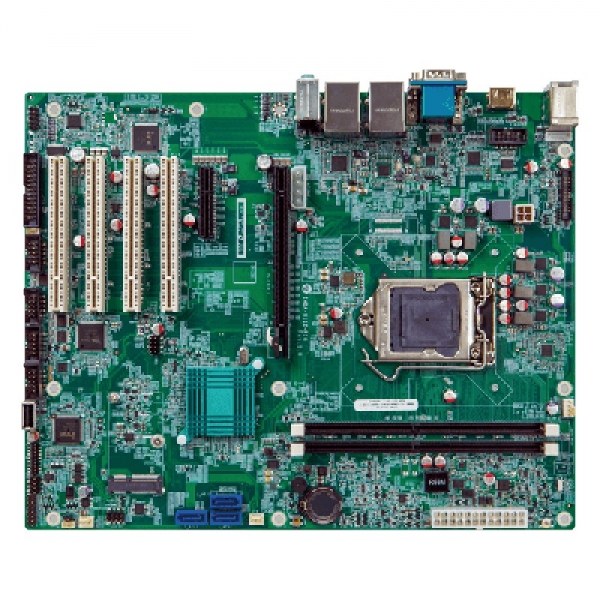

IMBA-H112
IEI
SKU: 09051500
ATX motherboard supports, H110, LGA 1151 6th/7th generation Intel Core i7/i5/i3, Pentium and Celeron CPU (Skylake), 2x288-pin DDR4-2133, HDMI/VGA/iDP, 2xGbE LAN, 6xCOM, 9xUSB, LPT, Audio, 1xPCIe x16, 1xPCIe x4, 4xPCI, 1xMini PCIe
Price on request
Available
Available
System Architecture
Form Factor
ATX
CPU
СPU Generation/Family
Skylake, Kaby Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Socket
LGA1151
Chipset
Chipset
Intel H110
Memory
Form-factor
DDR4
Socket Type
2xDIMM
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211, Intel i219-V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
5
RS-232/422/485
1
USB Total
9
USB 2.0
5
USB v3.x
4
LPT
LPT
Audio
Audio Controller
Realtek ALC662
Drive interfaces
mSATA
1
Extension Slots
Total
7
PCI Express x16
1
PCI Express x4
1
Mini-PCIe/Mini Card
1
PCI
4
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
COM, LPT, 3xSATA 3, USB 2.0, TPM, 4-pin (12V DC CPU), 24-pin ATX
Connectors
DB9, DB15 VGA, HDMI, PS/2 Keyboard/Mouse, 4xUSB, Mic In, Line In, Line Out
Dimensions and weight
Width
305 mm
Length
244 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1.25 kg
