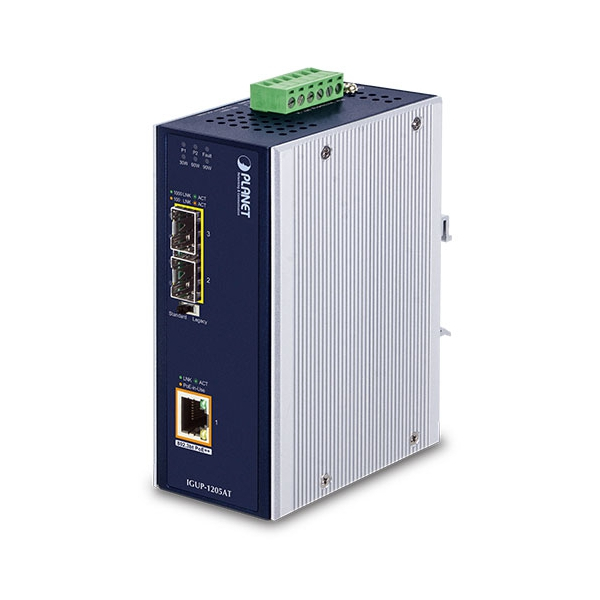

IGUP-1205AT
Planet
SKU: 56891300
Industrial Compact Media Converter 2x1000Base-X SFP to 1x1000Base T 802.3bt PoE++(802.3bt Type-4, PoH, Legacy mode) 12-56V DC, -40...+75C Wide Temperature
Price on request
Available
Available
Ethernet
10/100/1000 Mbit/s
1
SFP 100/1000 Mbit Ports
2
Supported Protocols
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, EE 802.3af for Power-over-Ethernet, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
LED / Controls
LED
1xOn/Off LED, PoE LED

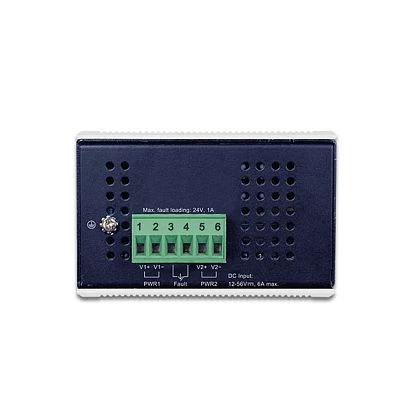

System Power Input
Input Voltage DC
12..56 V
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
55 mm
Depth
85 mm
Height
135 mm
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.6 kg
Gross Weight
1 kg
