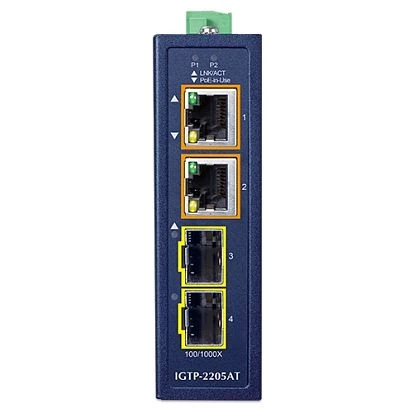

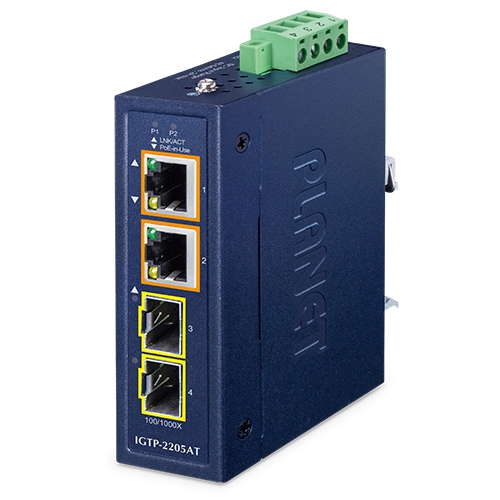

IGTP-2205AT

IGTP-2205AT

Planet
SKU: 80153200
Industrial Media Converter, IP30, 2x10/100/1000Base-T RJ45 with PoE, 2x1000Base-SX/LX/BX SFP, 48..54 VDC, Operating Temperature -40..75 C
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
SFP 100/1000 Mbit Ports
2
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)

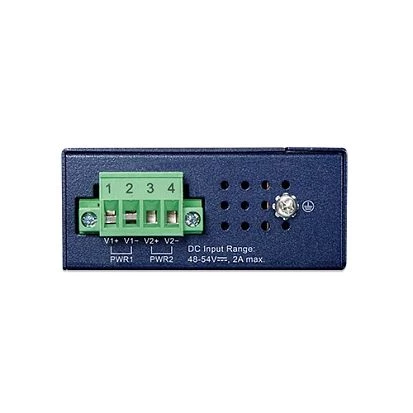

System Power Input
Input Voltage DC
48..54 V
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-90%
Construction
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
30 mm
Depth
70 mm
Height
104 mm
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.26 kg
Gross Weight
0.6 kg
