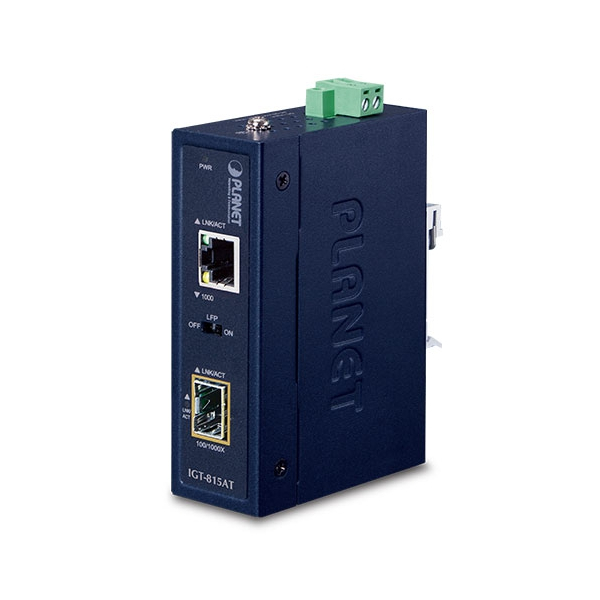

IGT-815AT
Planet
SKU: 56858400
Industrial Compact Media Converter 1x1000Base-X SFP to 1x1000Base T, LFP Supported, 6KV protection, 9-48V DC, -40...+75C Wide Temperature
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
1
PoE+ 10/100/1000 Mbit/s
1
SFP 100/1000 Mbit/s Ports
1
Supported Protocols
IEEE Standard
IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
9..48 V
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
30 mm
Depth
104 mm
Height
70 mm
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.4 kg
Gross Weight
0.4 kg
