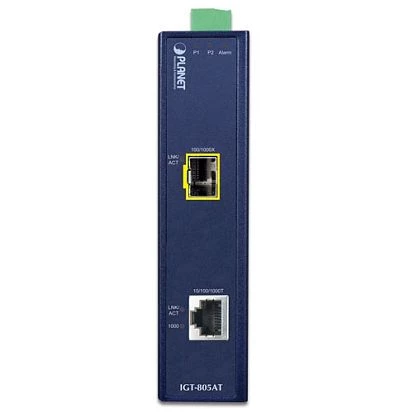

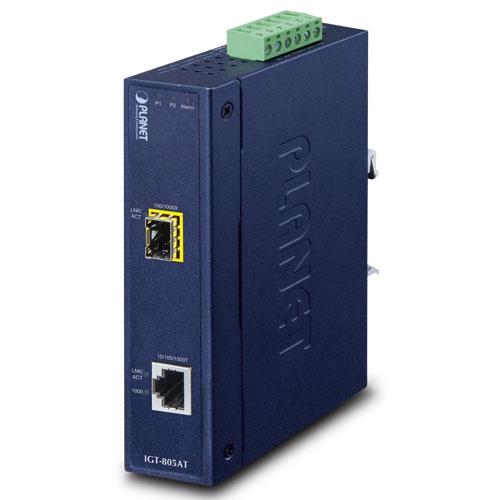

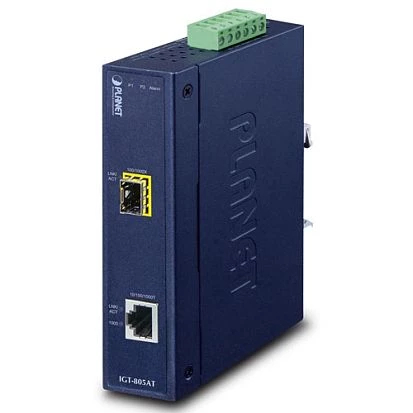

IGT-805AT
Planet
SKU: 56812400
Industrial Media Converter, IP30, 1x10/100/1000Base-T, 1x1000Base-SX/LX/BX SFP, 6KV protection, 12..48VDC, -40...75C Wide Temperature
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
1
SFP 100/1000 Mbit Ports
1
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
LED / Controls
LED
Power LED, Level signal LED

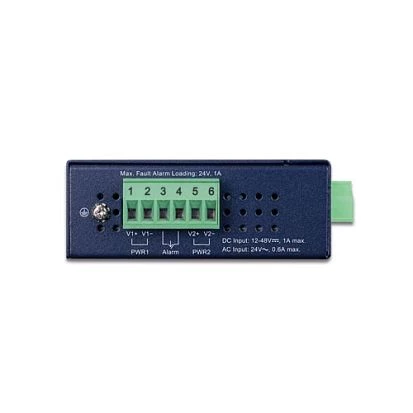

System Power Input
Input Voltage DC
12..48 V
Input Voltage AC
24..24 V
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
32 mm
Depth
87 mm
Height
135 mm
Standards and Certifications
Certifications
CE
EMI
FCC Part 15
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.4 kg
Gross Weight
0.8 kg
