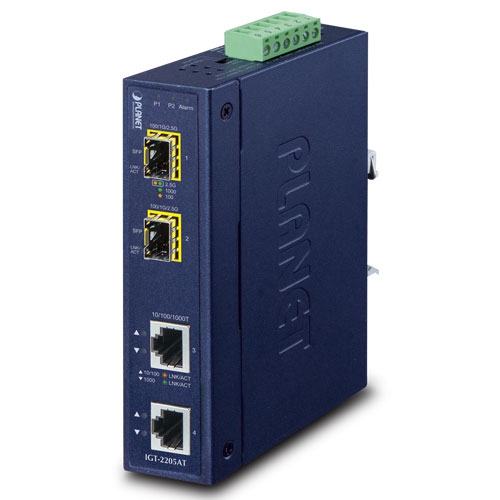

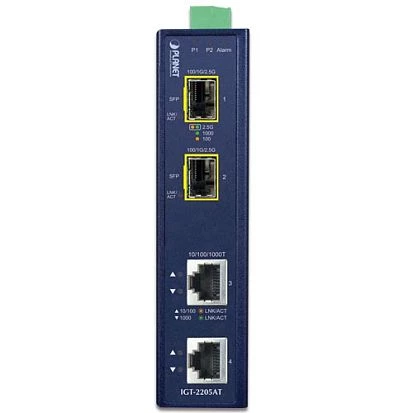

IGT-2205AT
Planet
SKU: 57226400
Industrial Media Converter, IP30, 2x10/100/1000Base-T RJ45, 2x100/1G/2.5GBase-X SFP, 12..48 VDC or 24 VAC, Operating Temperature -40..75 C
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
100 Mbit, 2.5 Gbit SFP Ports
2
Supported Protocols
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
Switch Properties
Jumbo Frame Size
9.2 kB

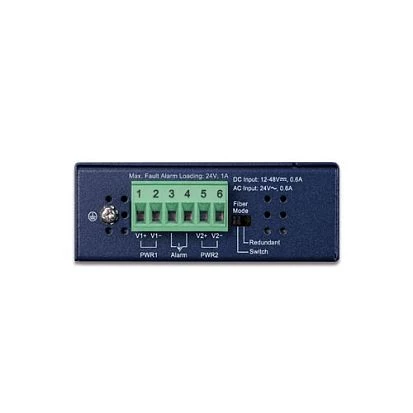

System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Construction
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
135 mm
Depth
87.8 mm
Height
32 mm
Standards and Certifications
Certifications
CE, FCC Class A
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.42 kg
Gross Weight
0.9 kg
