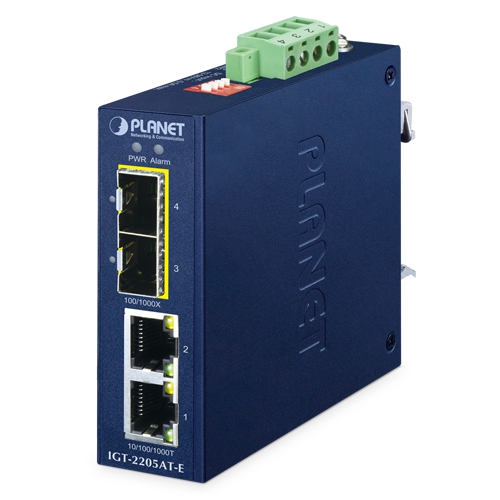

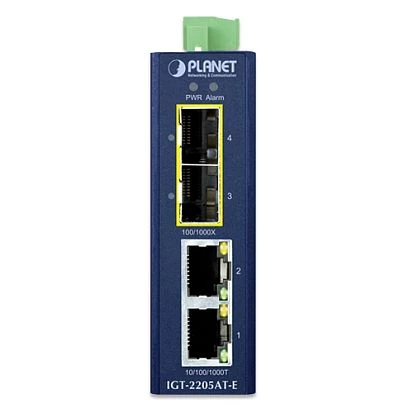

IGT-2205AT-E
Planet
SKU: 80153100
Industrial Compact Media Converter, IP40, 2x10/100/1000Base-T RJ45, 2x100/1000Base-X SFP, 12..58 VDC, Operating Temperature -40..75C
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
SFP 100/1000 Mbit Ports
2
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)

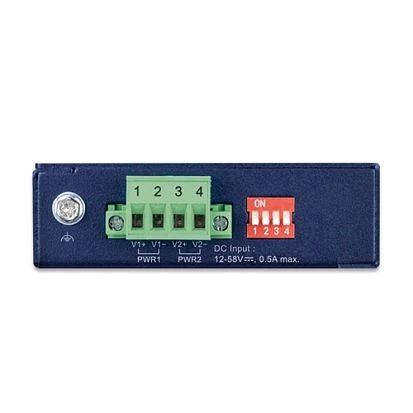

System Power Input
Input Voltage DC
12..58 V
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP40
Dimensions and weight
Width
26 mm
Depth
85 mm
Height
85 mm
Standards and Certifications
Certifications
CE, FCC Class A
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.3 kg
Gross Weight
0.7 kg
