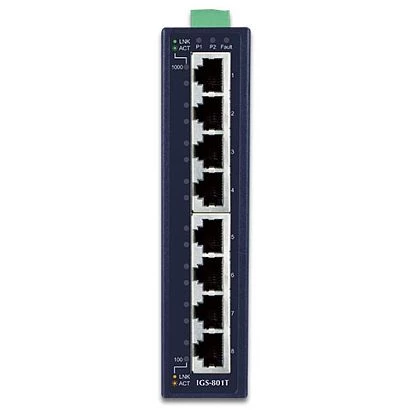

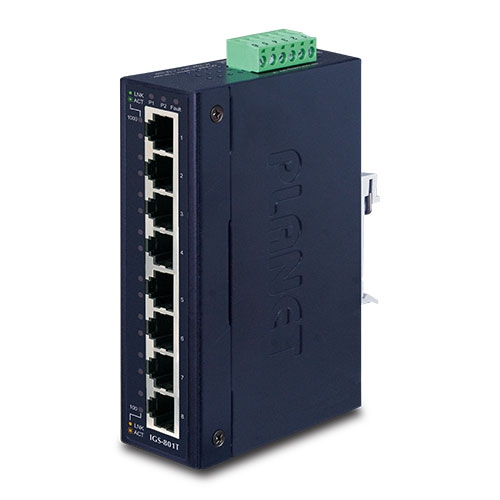

IGS-801T
Planet
SKU: 56805000
Industrial DIN-Rail Gigabit Ethernet Switch, 8x10/100/1000Base-T RJ45, 12..48VDC, -40..+75C Operating Temperature
Price on request
Available
Available
Ethernet
10/100/1000 Mbit/s
8
Switch Properties
Managed
No
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

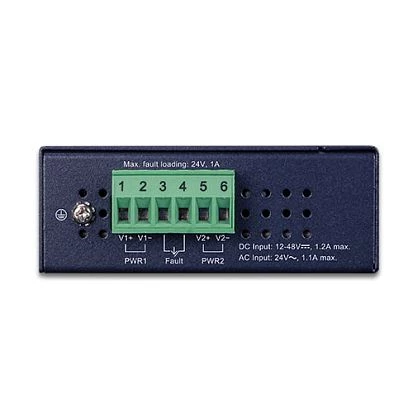

System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Input Voltage AC
24..24 V
Power Supply Reserve input Voltage AC
24..24 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
32 mm
Depth
87 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.5 kg
Gross Weight
1 kg
