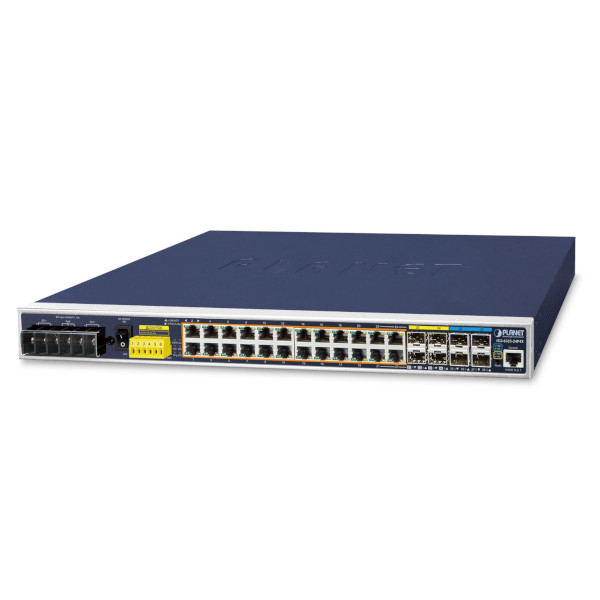

IGS-6325-24P4X

IGS-6325-24P4X

Planet
SKU: 56819200
Industrial Rackmount L3 Managed Ethernet Switch, 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+, -40 to 75 C, dual redundant power input 48~56VDC, DIDO, ERPS Ring, 1588, Modbus TCP, ONVIF, fanless design
Price on request
Available
Available

Ethernet
10/100/1000 Mbit/s
24
10 Gbit/s SFP+ Ports
4
PoE+ 10/100/1000 Mbit/s
24
Interfaces
RS-232
1
Supported Protocols
Security Protocols
SSH, SSL
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
System Power Input
Input Voltage DC
48..56 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP30
Height
1 U
Dimensions and weight
Width
440 mm
Depth
300 mm
Height
44.5 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Dimensions
Net Weight
3.8 kg
Gross Weight
5 kg
