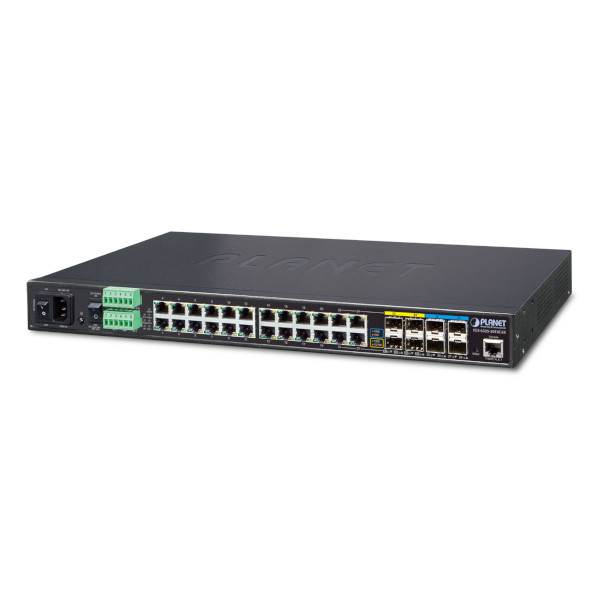

IGS-6325-20T4C4X
Planet
SKU: 56817800
Industrial Rackmount L3 Managed Ethernet Switch with 24x1000Base T, 4x1000 SFP ports, 4x10G, 2xDI/DO, Modbus TCP, Cybersecurity features, Redundant 100-240VAC/36-60VDC In, -40..75C Operating Temperature
Price on request
Available
Available
Ethernet
10/100/1000 Mbit/s
20
SFP 100/1000 Mbit/s Ports
4
10 Gbit/s SFP+ Ports
4
Interfaces
RS-232
1
Supported Protocols
Security Protocols
SSH, SSL
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
System Power Input
Input Voltage DC
36..60 V
Input Voltage AC
100..240 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Height
1 U
Dimensions and weight
Width
440 mm
Depth
200 mm
Height
44.5 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Dimensions
Net Weight
3 kg
Gross Weight
4.2 kg
