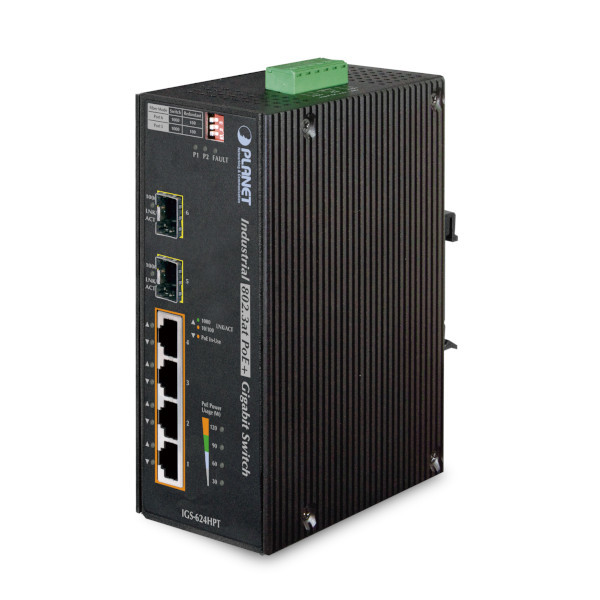

IGS-624HPT
Planet
SKU: 56809300
Industrial Power-over-Ethernet DIN-Rail Unmanaged Switch with 4x1000 802.3at PoE+, 2x1000 BaseX SFP+, , -40...+75C operating temperature, Dual redundant DC 48V Power Input
Price on request
Available
Available
Ethernet
SFP 100/1000 Mbit/s Ports
2
PoE+ 10/100/1000 Mbit/s
4
Supported Protocols
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, EE 802.3af for Power-over-Ethernet, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
System Power Input
Redundant power input
Yes
Input Voltage DC
48..48 V
Power Supply Reserve input Voltage DC
48..48 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
72 mm
Depth
107 mm
Height
152 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.54 kg
Gross Weight
2 kg
