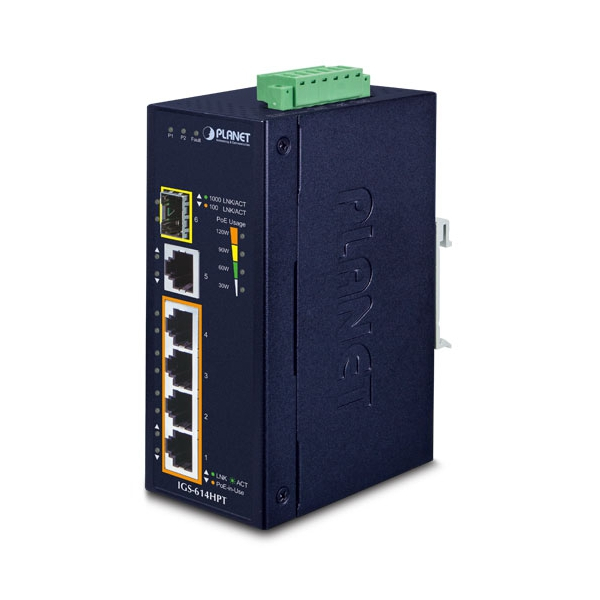

IGS-614HPT
Planet
SKU: 56891200
Industrial Power-over-Ethernet DIN-Rail Unmanaged Switch with 4x1000 802.3at PoE+ (120W), 1x1000 Base T, 1x1000 BaseX SFP+, -40...+75C operating temperature, Dual 48-56VDC Power Input, PoE LED
Price on request
Available
Available
Ethernet
10/100/1000 Mbit/s
1
SFP 100/1000 Mbit/s Ports
1
PoE+ 10/100/1000 Mbit/s
4
Supported Protocols
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, EE 802.3af for Power-over-Ethernet, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX
System Power Input
Redundant power input
Yes
Input Voltage DC
48..56 V
Power Supply Reserve input Voltage DC
48..56 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP40
Dimensions and weight
Width
50 mm
Depth
87 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
