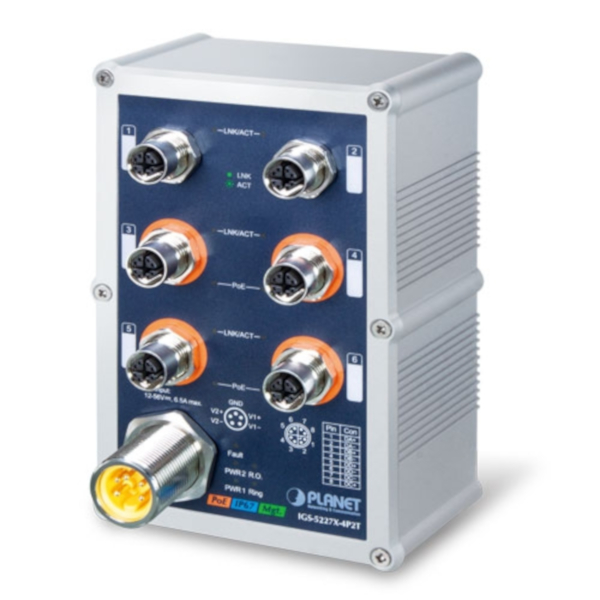

IGS-5227X-4P2T
Planet
SKU: 57297300
IP67-rated Industrial L2+ 4-Port 10/100/1000T M12 802.3at PoE + 2-Port 10/100/1000T M12 Managed Ethernet Switch, X-coded M12, Dual 12-56V DC-In, -40...+75C operating temperature
Price on request
Available
Available
Ethernet
Total Ethernet
6
10/100/1000 Mbit/s
6
PoE+ 10/100/1000 Mbit/s
4
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, Telnet, SNMP
Security Protocols
SSH, SSL
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, EE 802.3af for Power-over-Ethernet, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X), IEEE 802.3ah OAM for Link-Fault Management
System Power Input
Input Voltage DC
12..56 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP67
Dimensions and weight
Width
103 mm
Depth
68.2 mm
Height
163 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Rolling Stock
EN 50155
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.98 kg
Gross Weight
1.5 kg
