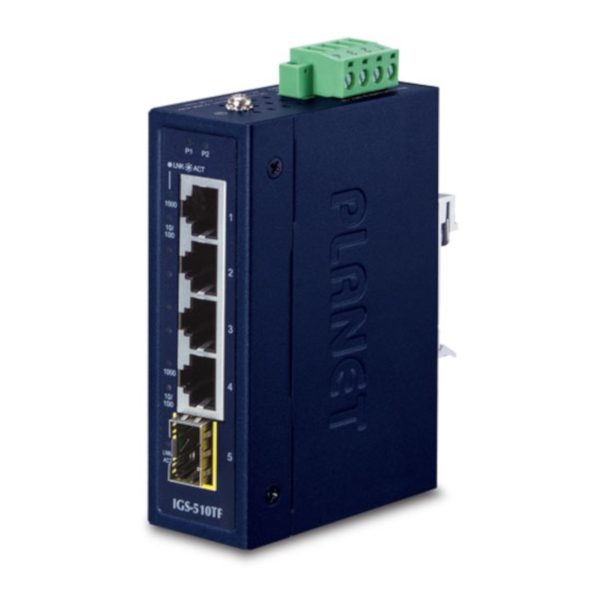

IGS-510TF
Planet
SKU: 56891100
Industrial DIN-Rail Gigabit Unmanaged Ethernet Switch, 4x1000Base(T) + 1x1000 SFP Ports, 6KV DC protection, dual 12-48VDC/24VAC Input Voltage, -40..+75C Operating Temperature
Price on request
Available
Available
Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
4
SFP 100/1000 Mbit/s Ports
1
Switch Properties
Managed
No
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet
System Power Input
Redundant power input
Yes
Input Voltage DC
9..48 V
Power Supply Reserve input Voltage DC
9..48 V
Input Voltage AC
24..24 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
30 mm
Depth
70 mm
Height
104 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.5 kg
Gross Weight
1 kg
