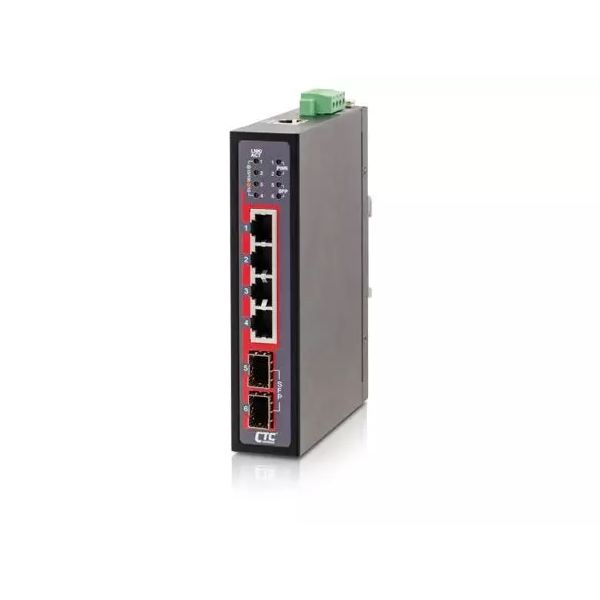

IGS-402CS-4PH
CTC Union
SKU: 57983900
Industrial Unmanaged Ethernet Switch, IP30, 4x10/100/1000Base-T RJ45 with PoE, 2x100/1000Base-X SFP, redundant dual power input 44..57VDC, -10..+60C Operating Temperature
Price on request
Available
Available
Ethernet
Total Ethernet
4
10/100/1000 Mbit/s
4
SFP 100/1000 Mbit/s Ports
2
PoE 10/100/1000 Mbit/s
4
Switch Properties
MAC Table Size
4000
Jumbo Frame Size
10 kB
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
System Power Input
Input Voltage DC
44..57 V
Construction
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
106 mm
Depth
38.6 mm
Height
142 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-95%
MTBF
745955 h
Standards and Certifications
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 55032, EN 55035
Rolling Stock
EN 50121-4
Safety
en_62368_1
Freefall
IEC 60068-2-31
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.71 kg
Gross Weight
1.8 kg
