IGS-1604SM-E
CTC Union
SKU: 56019900
Industrial Managed Gigabit Ethernet Switch with 16x 1000 Base-T Ports, 4x SFP Ports, 9.6...60VDC-In, -40..+75C Operating Temperature
Price on request
Available on order
Available on order

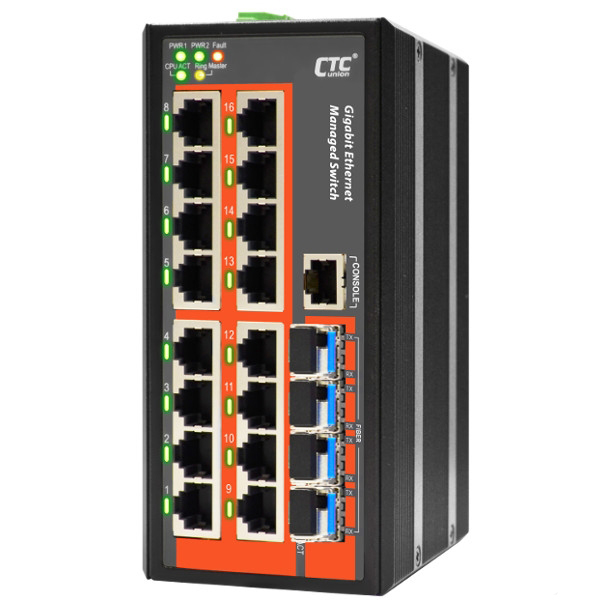

IGS-1604SM-E
Industrial Managed Gigabit Ethernet Switch with 16x 10/100/1000 Base-T Ports, 4x SFP Ports, -40..+75C Operating Temperature The Industrial Managed Gigabit Ethernet Switch IGS-1604SM-E is specially designed for industrial networking and ensures proper work characteristics in harsh environments. It provides a variety of network redundancy for u-Ring, u-Chain and sub-Ring topologies which can support ultimately 5 rings with the recovery time less than 10ms for a single point error occurs in the system. The IGS-1604SM-E has 16xRJ-45 Gigabit ports on board for twisted-pair connecting and 4x100/1000 Base-X SFP ports which can provide stable and reliable Ethernet transmission.The IGS-1604SM-E also supports 9.6-60VDC voltage range for redundant dual input power. Thus, it can be powered from two independent power sources for uninterrupted and stable working. This Industrial Managed Switch supports a variety of management functions such as STP/RSTP/MSTP for building durable network topology and also SNMP protocol for remote adjustment. It allows use special software kit to control and monitor IGS-1604SM-E status. IGS-1604SM-E has EMI, EMS certifications and also suitable for heavy industrial environment and railway traffic. It meets the requirements in modern features like precise time synchronization, cable diagnostic, Green Ethernet and also has a wide operating temperature range (-40 to 75C).
IGS-1604SM-E
Industrial Managed Gigabit Ethernet Switch with 16x 10/100/1000 Base-T Ports, 4x SFP Ports, -40..+75C Operating Temperature The Industrial Managed Gigabit Ethernet Switch IGS-1604SM-E is specially designed for industrial networking and ensures proper work characteristics in harsh environments. It provides a variety of network redundancy for u-Ring, u-Chain and sub-Ring topologies which can support ultimately 5 rings with the recovery time less than 10ms for a single point error occurs in the system. The IGS-1604SM-E has 16xRJ-45 Gigabit ports on board for twisted-pair connecting and 4x100/1000 Base-X SFP ports which can provide stable and reliable Ethernet transmission.The IGS-1604SM-E also supports 9.6-60VDC voltage range for redundant dual input power. Thus, it can be powered from two independent power sources for uninterrupted and stable working. This Industrial Managed Switch supports a variety of management functions such as STP/RSTP/MSTP for building durable network topology and also SNMP protocol for remote adjustment. It allows use special software kit to control and monitor IGS-1604SM-E status. IGS-1604SM-E has EMI, EMS certifications and also suitable for heavy industrial environment and railway traffic. It meets the requirements in modern features like precise time synchronization, cable diagnostic, Green Ethernet and also has a wide operating temperature range (-40 to 75C).
Ethernet
10/100/1000 Mbit/s
16
Type 10/100/1000 Mbit/s
RJ-45
SFP 100/1000 Mbit Ports
4
Switch Properties
Switch Level
Layer 2
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, Telnet, SNTP, RMON, TFTP, IGMPv1/v2/v3
Security Protocols
IEEE 802.1X Network Access Control
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol
LED / Controls
Setup of Operation Mode
Console Port
System Power Input
Redundant power input
Yes
Input Voltage DC
9..60 V
Power Supply Reserve input Voltage DC
9..60 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
72 mm
Depth
106 mm
Height
152 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Rolling Stock
EN 50121-4
Safety
UL 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.73 kg
Gross Weight
1.76 kg
