IGS-1000-8T4X

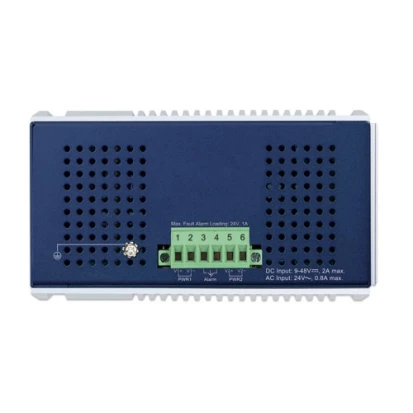

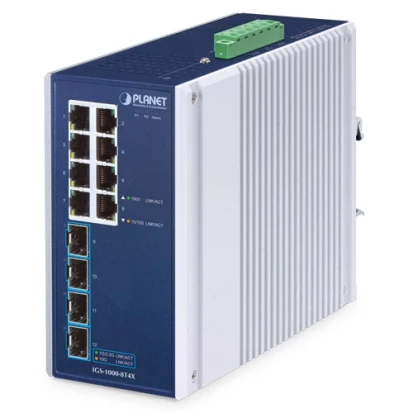

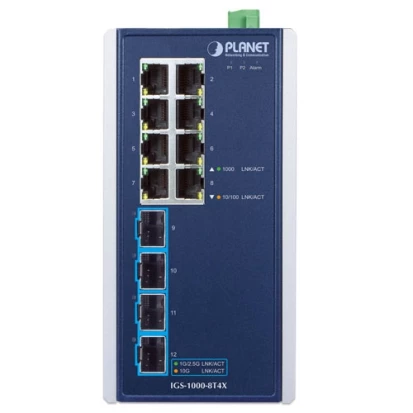

IGS-1000-8T4X

Planet
SKU: 57855200
Industrial Ethernet Switch IP30, 8-Port 10/100/1000BASE-T, 4-Port 10GBASE-X SFP+, 9..48 VDC, Operating Temperature -40..75 C
Price on request
Available
Available

Ethernet
10/100/1000 Mbit/s
8
10 Gbit/s SFP+ Ports
4
Switch Properties
MAC Table Size
16000
Packet Buffer Size
12000 kBit
Jumbo Frame Size
12 kB
Supported Protocols
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
9..48 V
Construction
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
76 mm
Depth
135 mm
Height
152 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.21 kg
Gross Weight
2 kg
