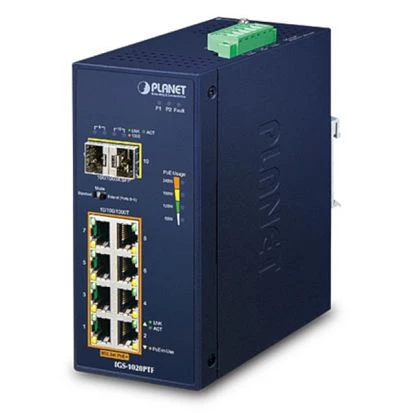

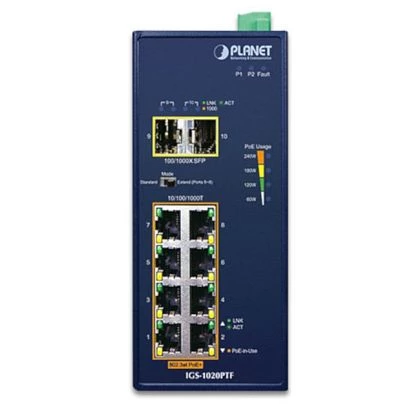

IGS-1020PTF
Planet
SKU: 57295600
Industrial PoE Ethernet Switch, IP30, 8x10/100/1000Base-T with PoE, 2x100/1000Base-SX/LX/BX SFP, 48..54VDC, -40...75C operating temperature
Price on request
Available
Available
Ethernet
Total Ethernet
8
SFP 100/1000 Mbit Ports
2
PoE+ 10/100/1000 Mbit/s
8
Switch Properties
Managed
No
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet

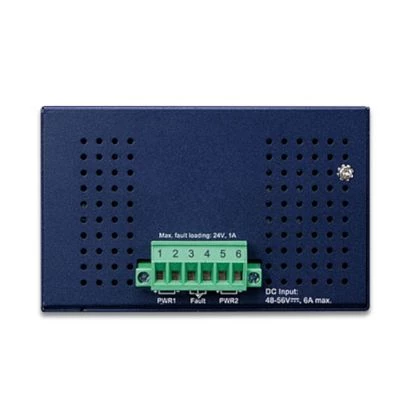

System Power Input
Input Voltage DC
48..56 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
66 mm
Depth
106 mm
Height
152 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.9 kg
Gross Weight
1.5 kg
