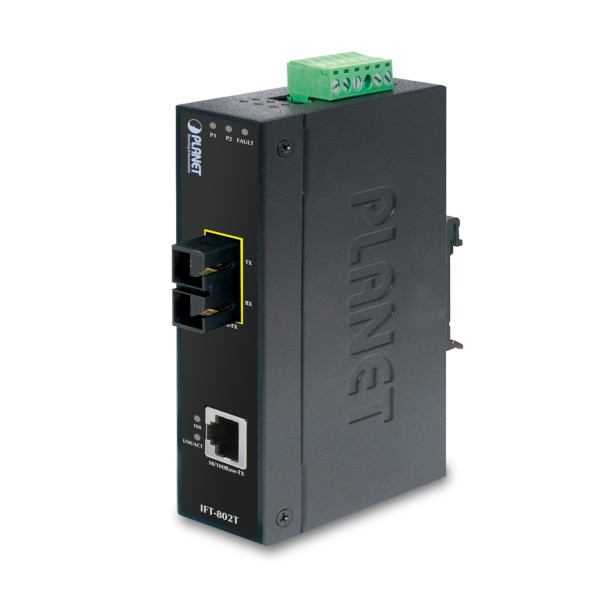

IFT-802TS15
Planet
SKU: 56813000
Industrial Fast Ethernet Media Converter with 1x100 Mbit/s Base TX to 1x 100Base-FX SC SM, single mode, 15km distance, 1310nm optical frequency, 6kV protection, 12-48V redundant DC, -40..+75C operation temperature
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100 Mbit/s
1
SFP Fast Ethernet 100 Mbit/s
1
Typical Distance
15 km
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
LED / Controls
LED
Power LED, Level signal LED
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
32 mm
Depth
85 mm
Height
135 mm
Standards and Certifications
Certifications
CE
EMI
FCC Part 15
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.43 kg
Gross Weight
0.9 kg
