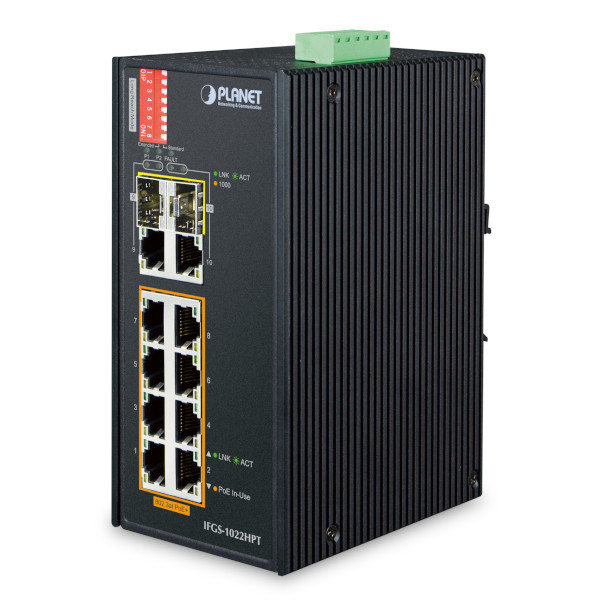

IFGS-1022HPT
Planet
SKU: 56809900
Industrial Power-over-Ethernet DIN-Rail Switch with 8x100Mbps 802.3at PoE+, 2x1000 Mbps TP/SFP, 250m Extend mode, -40...+75C operating temperature, Dual redundant DC 48-56V Power Input
Price on request
Available
Available
Ethernet
SFP 100/1000 Mbit/s Ports
2
PoE 10/100 Mbit/s
8
Supported Protocols
IEEE Standard
IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
System Power Input
Input Voltage DC
48..56 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
161 mm
Depth
107 mm
Height
72 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
