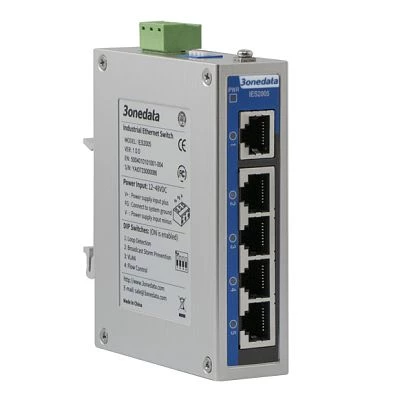

IES2005-5T
3onedata
SKU: 56886200
Industrial DIN-Rail Unmanaged Ethernet Switch with 5x1000 Base TX, 12-48 VDC, -40..75C Operating Temperature, MOQ:300
Price on request
Available
Available
Ethernet
10/100 Mbit/s
5
Switch Properties
Managed
No
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX
System Power Input
Input Voltage DC
12..48 V
Input Voltage AC
24..24 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop
Protection Level of Chassis
IP40
Dimensions and weight
Width
28 mm
Depth
78 mm
Height
103 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, FCC
EMS
EN 61000-4-2, EN 61000-4-4, EN 61000-4-5
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
Ethernet
10/100 Mbit/s
5
Switch Properties
Managed
No
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX
System Power Input
Input Voltage DC
12..48 V
Input Voltage AC
24..24 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop
Protection Level of Chassis
IP40
Dimensions and weight
Width
28 mm
Depth
78 mm
Height
103 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, FCC
EMS
EN 61000-4-2, EN 61000-4-4, EN 61000-4-5
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
Ethernet
10/100 Mbit/s
5
Switch Properties
Managed
No
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX
System Power Input
Input Voltage DC
12..48 V
Input Voltage AC
24..24 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop
Protection Level of Chassis
IP40
Dimensions and weight
Width
28 mm
Depth
78 mm
Height
103 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, FCC
EMS
EN 61000-4-2, EN 61000-4-4, EN 61000-4-5
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
Ethernet
10/100 Mbit/s
5
Switch Properties
Managed
No
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX
System Power Input
Input Voltage DC
12..48 V
Input Voltage AC
24..24 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop
Protection Level of Chassis
IP40
Dimensions and weight
Width
28 mm
Depth
78 mm
Height
103 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, FCC
EMS
EN 61000-4-2, EN 61000-4-4, EN 61000-4-5
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
