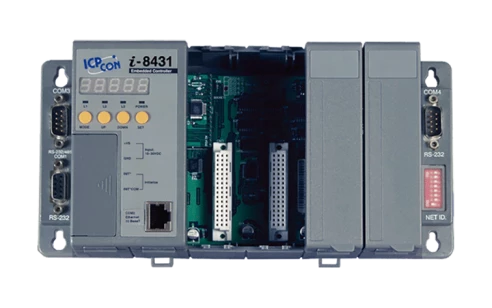

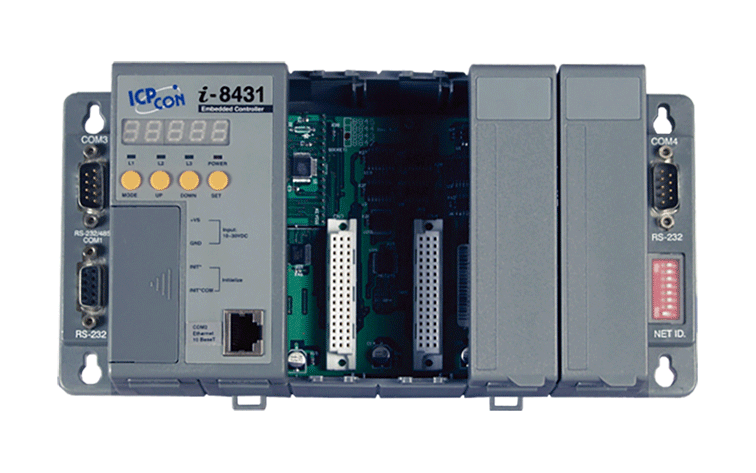

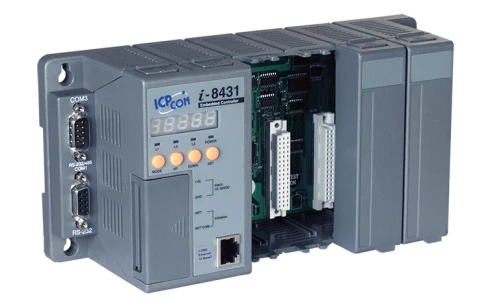

I-8431-G

I-8431-G

ICP DAS
SKU: 06251800
PC-compatible 40MHz Industrial Controller, 512kb Flash, 512kb SRAM, 2xRS232, 1xRS232/485, Ethernet 10BaseT, 7-Segment Display, Mini OS7, 4 Expansion Slots
Price on request
Available
Available

I/O Expansion Unit
Price with VAT
Price on request
Price on request
Price on request
Price on request
Interface Converters
Price on request
Price on request
Price on request
Price on request
Price on request
Power Supply
Price on request
Price on request
I/O Expansion Unit
Price with VAT
Price on request
Price on request
Price on request
Price on request
Interface Converters
Price on request
Price on request
Price on request
Price on request
Price on request
Power Supply
Price on request
Price on request

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Display
Display Type
LED Character
CPU
Processor Installed
80188
Memory
Default on Board Memory
0.04 GB
SRAM
512 kB
Installed drive
Flash Memory Capacity
0.512 MB
EEPROM Memory Capacity
2 kB
Non-volatile NVRAM memory capacity
31 Byte
Expansion Module
Quantity of Slots
4
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Mini OS7
Programming Method
C/C++
Development Software
MiniOS7 Studio
Interfaces
COM Total
3
RS-232
2
RS-232/485
1
Dimensions and weight
Width
230 mm
Depth
110 mm
Height
75.5 mm
Dimensions
Gross Weight
1.2 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Display
Display Type
LED Character
CPU
Processor Installed
80188
Memory
Default on Board Memory
0.04 GB
SRAM
512 kB
Installed drive
Flash Memory Capacity
0.512 MB
EEPROM Memory Capacity
2 kB
Non-volatile NVRAM memory capacity
31 Byte
Expansion Module
Quantity of Slots
4
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Mini OS7
Programming Method
C/C++
Development Software
MiniOS7 Studio
Interfaces
COM Total
3
RS-232
2
RS-232/485
1
Dimensions and weight
Width
230 mm
Depth
110 mm
Height
75.5 mm
Dimensions
Gross Weight
1.2 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Display
Display Type
LED Character
CPU
Processor Installed
80188
Memory
Default on Board Memory
0.04 GB
SRAM
512 kB
Installed drive
Flash Memory Capacity
0.512 MB
EEPROM Memory Capacity
2 kB
Non-volatile NVRAM memory capacity
31 Byte
Expansion Module
Quantity of Slots
4
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Mini OS7
Programming Method
C/C++
Development Software
MiniOS7 Studio
Interfaces
COM Total
3
RS-232
2
RS-232/485
1
Dimensions and weight
Width
230 mm
Depth
110 mm
Height
75.5 mm
Dimensions
Gross Weight
1.2 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Display
Display Type
LED Character
CPU
Processor Installed
80188
Memory
Default on Board Memory
0.04 GB
SRAM
512 kB
Installed drive
Flash Memory Capacity
0.512 MB
EEPROM Memory Capacity
2 kB
Non-volatile NVRAM memory capacity
31 Byte
Expansion Module
Quantity of Slots
4
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Mini OS7
Programming Method
C/C++
Development Software
MiniOS7 Studio
Interfaces
COM Total
3
RS-232
2
RS-232/485
1
Dimensions and weight
Width
230 mm
Depth
110 mm
Height
75.5 mm
Dimensions
Gross Weight
1.2 kg

Documentation
I-8431-G-Datasheet.pdf
Documentation
I-8431-G-Datasheet.pdf
Documentation
I-8431-G-Datasheet.pdf
Documentation
I-8431-G-Datasheet.pdf
