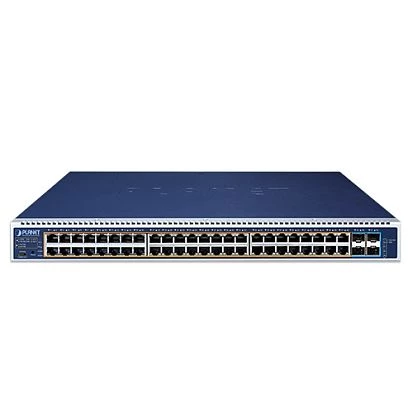

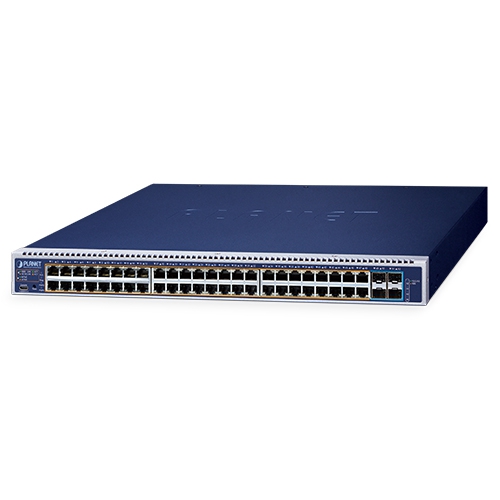

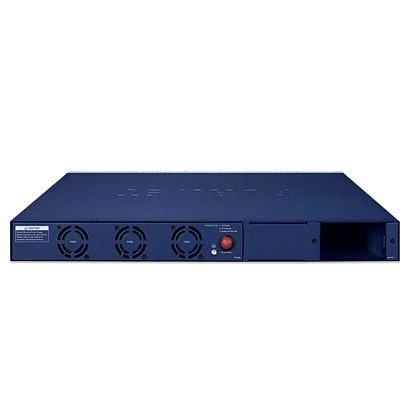

GS-6322-48UP4X
Planet
SKU: 80154000
L3 Managed Switch with dual modular power supply slots, 48x10/100/1000Base-T PoE Ports, 4x10GBASE-SR/LR SFP+ Ports, 1xUSB, 100..240V AC, 0..50C Operating Temperature
Price on request
Available
Available
Ethernet
Total Ethernet
48
10/100/1000 Mbit/s
48
10 Gbit SFP+ Ports
4
PoE+ 10/100/1000 Mbit/s
48
Switch Properties
Jumbo Frame Size
10 kB
Supported Protocols
Protocol Layer 3
RIP V1/V2, OSPF
Managment Protocols
SNMPv1/v2c/v3, LLDP, Telnet, LACP, ARP, IGMP Snooping v1/v2/v3, IGMP Querier
Reservation protocols
MSTP, STP, RSTP
Security Protocols
RADIUS, SSL, TACACS+, SSH2
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3ah OAM for Link-Fault Management, IEEE 802.3bt for Power over Ethernet
System Power Input
Input Voltage AC
100..240 V
Dimensions and weight
Width
444 mm
Depth
331 mm
Height
44 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
5.48 kg
Gross Weight
6 kg
Ethernet
Total Ethernet
48
10/100/1000 Mbit/s
48
10 Gbit SFP+ Ports
4
PoE+ 10/100/1000 Mbit/s
48
Switch Properties
Jumbo Frame Size
10 kB
Supported Protocols
Protocol Layer 3
RIP V1/V2, OSPF
Managment Protocols
SNMPv1/v2c/v3, LLDP, Telnet, LACP, ARP, IGMP Snooping v1/v2/v3, IGMP Querier
Reservation protocols
MSTP, STP, RSTP
Security Protocols
RADIUS, SSL, TACACS+, SSH2
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3ah OAM for Link-Fault Management, IEEE 802.3bt for Power over Ethernet
System Power Input
Input Voltage AC
100..240 V
Dimensions and weight
Width
444 mm
Depth
331 mm
Height
44 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
5.48 kg
Gross Weight
6 kg
Ethernet
Total Ethernet
48
10/100/1000 Mbit/s
48
10 Gbit SFP+ Ports
4
PoE+ 10/100/1000 Mbit/s
48
Switch Properties
Jumbo Frame Size
10 kB
Supported Protocols
Protocol Layer 3
RIP V1/V2, OSPF
Managment Protocols
SNMPv1/v2c/v3, LLDP, Telnet, LACP, ARP, IGMP Snooping v1/v2/v3, IGMP Querier
Reservation protocols
MSTP, STP, RSTP
Security Protocols
RADIUS, SSL, TACACS+, SSH2
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3ah OAM for Link-Fault Management, IEEE 802.3bt for Power over Ethernet
System Power Input
Input Voltage AC
100..240 V
Dimensions and weight
Width
444 mm
Depth
331 mm
Height
44 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
5.48 kg
Gross Weight
6 kg
Ethernet
Total Ethernet
48
10/100/1000 Mbit/s
48
10 Gbit SFP+ Ports
4
PoE+ 10/100/1000 Mbit/s
48
Switch Properties
Jumbo Frame Size
10 kB
Supported Protocols
Protocol Layer 3
RIP V1/V2, OSPF
Managment Protocols
SNMPv1/v2c/v3, LLDP, Telnet, LACP, ARP, IGMP Snooping v1/v2/v3, IGMP Querier
Reservation protocols
MSTP, STP, RSTP
Security Protocols
RADIUS, SSL, TACACS+, SSH2
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3ah OAM for Link-Fault Management, IEEE 802.3bt for Power over Ethernet
System Power Input
Input Voltage AC
100..240 V
Dimensions and weight
Width
444 mm
Depth
331 mm
Height
44 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
5.48 kg
Gross Weight
6 kg
