GS-6311-24PL4X

Planet
SKU: 80069100

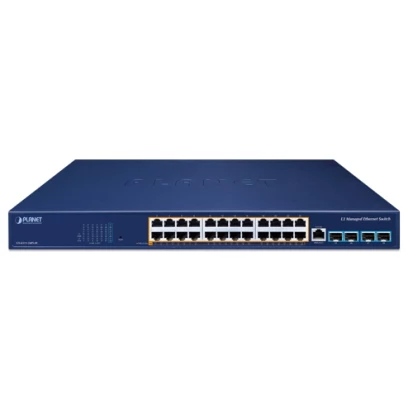

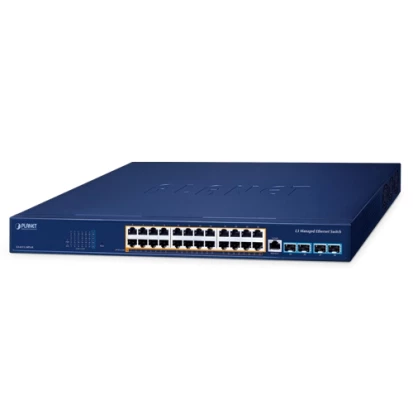

Managed Ethernet Switch, IP30, 24x10/100/1000Base-T with PoE+, 4x10GBase-SR/LR SFP+, 1xCOM, CPU RTL9301-CG, RAM 4GB, Flash Memory 32 Mbytes, Layer 3, 100..240 VAC, Operating Temperature 0..50 C
Price on request
Available
Available
Ethernet
Total Ethernet
24
10/100/1000 Mbit/s
24
10 Gbit SFP+ Ports
4
PoE+ 10/100/1000 Mbit/s
24
Switch Properties
MAC Table Size
16000
Jumbo Frame Size
12 kB
Supported Protocols
Protocol Layer 3
Static Routing, RIP V1/V2, OSPF
Managment Protocols
SNMPv1/v2c/v3, Syslog, Telnet, DNS, DHCP, NTP, GVRP, RMON, TFTP, FTP, IGMP Snooping v1/v2/v3, IGMP Querier, ICMP
Security Protocols
SSH, RADIUS, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage AC
100..240 V
Dimensions and weight
Width
440 mm
Depth
330 mm
Height
44 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-90%
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Dimensions
Net Weight
4.6 kg
Gross Weight
5.6 kg
Ethernet
Total Ethernet
24
10/100/1000 Mbit/s
24
10 Gbit SFP+ Ports
4
PoE+ 10/100/1000 Mbit/s
24
Switch Properties
MAC Table Size
16000
Jumbo Frame Size
12 kB
Supported Protocols
Protocol Layer 3
Static Routing, RIP V1/V2, OSPF
Managment Protocols
SNMPv1/v2c/v3, Syslog, Telnet, DNS, DHCP, NTP, GVRP, RMON, TFTP, FTP, IGMP Snooping v1/v2/v3, IGMP Querier, ICMP
Security Protocols
SSH, RADIUS, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage AC
100..240 V
Dimensions and weight
Width
440 mm
Depth
330 mm
Height
44 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-90%
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Dimensions
Net Weight
4.6 kg
Gross Weight
5.6 kg
Ethernet
Total Ethernet
24
10/100/1000 Mbit/s
24
10 Gbit SFP+ Ports
4
PoE+ 10/100/1000 Mbit/s
24
Switch Properties
MAC Table Size
16000
Jumbo Frame Size
12 kB
Supported Protocols
Protocol Layer 3
Static Routing, RIP V1/V2, OSPF
Managment Protocols
SNMPv1/v2c/v3, Syslog, Telnet, DNS, DHCP, NTP, GVRP, RMON, TFTP, FTP, IGMP Snooping v1/v2/v3, IGMP Querier, ICMP
Security Protocols
SSH, RADIUS, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage AC
100..240 V
Dimensions and weight
Width
440 mm
Depth
330 mm
Height
44 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-90%
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Dimensions
Net Weight
4.6 kg
Gross Weight
5.6 kg
Ethernet
Total Ethernet
24
10/100/1000 Mbit/s
24
10 Gbit SFP+ Ports
4
PoE+ 10/100/1000 Mbit/s
24
Switch Properties
MAC Table Size
16000
Jumbo Frame Size
12 kB
Supported Protocols
Protocol Layer 3
Static Routing, RIP V1/V2, OSPF
Managment Protocols
SNMPv1/v2c/v3, Syslog, Telnet, DNS, DHCP, NTP, GVRP, RMON, TFTP, FTP, IGMP Snooping v1/v2/v3, IGMP Querier, ICMP
Security Protocols
SSH, RADIUS, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage AC
100..240 V
Dimensions and weight
Width
440 mm
Depth
330 mm
Height
44 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-90%
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Dimensions
Net Weight
4.6 kg
Gross Weight
5.6 kg
Documentation
GS-6311-24PL4X-Datasheet.pdf GS-6311-24PL4X-User-Manual.pdf
Documentation
GS-6311-24PL4X-Datasheet.pdf GS-6311-24PL4X-User-Manual.pdf
Documentation
GS-6311-24PL4X-Datasheet.pdf GS-6311-24PL4X-User-Manual.pdf
Documentation
GS-6311-24PL4X-Datasheet.pdf GS-6311-24PL4X-User-Manual.pdf
