GS-6311-24P4XV
Planet
SKU: 57889600

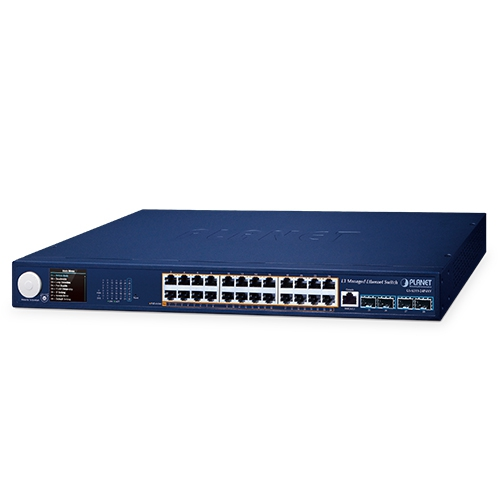

Managed Ethernet Switch, 24-Port 10/100/1000BASE-T with PoE+, 4-Port 10GBASE-SR/LR SFP+, MIPS 800MHz CPU, RAM up to 512Mbytes, Flash Memory 32Mbytes, 1xCOM, 100..240 VAC, Operating Temperature 0..50 C
Price on request
Available
Available
Ethernet
10/100/1000 Mbit/s
24
10 Gbit/s SFP+ Ports
2
PoE 10/100/1000 Mbit/s
24
Switch Properties
MAC Table Size
16000
Jumbo Frame Size
12 kB
Supported Protocols
Protocol Layer 3
RIP V1/V2, OSPF
Managment Protocols
SNMPv1/v2c/v3, Telnet, DNS, GVRP, RMON, TFTP, ARP, Proxy ARP, DHCP Option 66/67/82, FTP, IGMP Snooping v1/v2/v3, IGMP Querier, ICMP
Security Protocols
RADIUS, TACACS+, SSH2
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage AC
100..240 V
Construction
Height
1 U
Dimensions and weight
Width
440 mm
Depth
207 mm
Height
44 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-90%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3.5 kg
Gross Weight
4 kg
Ethernet
10/100/1000 Mbit/s
24
10 Gbit/s SFP+ Ports
2
PoE 10/100/1000 Mbit/s
24
Switch Properties
MAC Table Size
16000
Jumbo Frame Size
12 kB
Supported Protocols
Protocol Layer 3
RIP V1/V2, OSPF
Managment Protocols
SNMPv1/v2c/v3, Telnet, DNS, GVRP, RMON, TFTP, ARP, Proxy ARP, DHCP Option 66/67/82, FTP, IGMP Snooping v1/v2/v3, IGMP Querier, ICMP
Security Protocols
RADIUS, TACACS+, SSH2
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage AC
100..240 V
Construction
Height
1 U
Dimensions and weight
Width
440 mm
Depth
207 mm
Height
44 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-90%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3.5 kg
Gross Weight
4 kg
Ethernet
10/100/1000 Mbit/s
24
10 Gbit/s SFP+ Ports
2
PoE 10/100/1000 Mbit/s
24
Switch Properties
MAC Table Size
16000
Jumbo Frame Size
12 kB
Supported Protocols
Protocol Layer 3
RIP V1/V2, OSPF
Managment Protocols
SNMPv1/v2c/v3, Telnet, DNS, GVRP, RMON, TFTP, ARP, Proxy ARP, DHCP Option 66/67/82, FTP, IGMP Snooping v1/v2/v3, IGMP Querier, ICMP
Security Protocols
RADIUS, TACACS+, SSH2
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage AC
100..240 V
Construction
Height
1 U
Dimensions and weight
Width
440 mm
Depth
207 mm
Height
44 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-90%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3.5 kg
Gross Weight
4 kg
Ethernet
10/100/1000 Mbit/s
24
10 Gbit/s SFP+ Ports
2
PoE 10/100/1000 Mbit/s
24
Switch Properties
MAC Table Size
16000
Jumbo Frame Size
12 kB
Supported Protocols
Protocol Layer 3
RIP V1/V2, OSPF
Managment Protocols
SNMPv1/v2c/v3, Telnet, DNS, GVRP, RMON, TFTP, ARP, Proxy ARP, DHCP Option 66/67/82, FTP, IGMP Snooping v1/v2/v3, IGMP Querier, ICMP
Security Protocols
RADIUS, TACACS+, SSH2
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage AC
100..240 V
Construction
Height
1 U
Dimensions and weight
Width
440 mm
Depth
207 mm
Height
44 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-90%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3.5 kg
Gross Weight
4 kg
