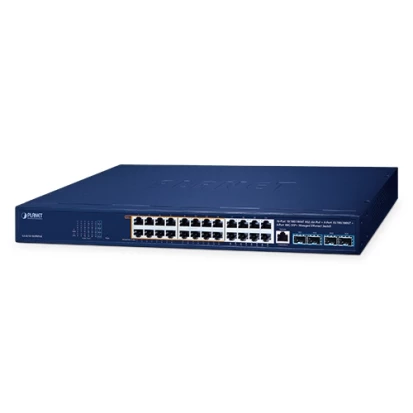

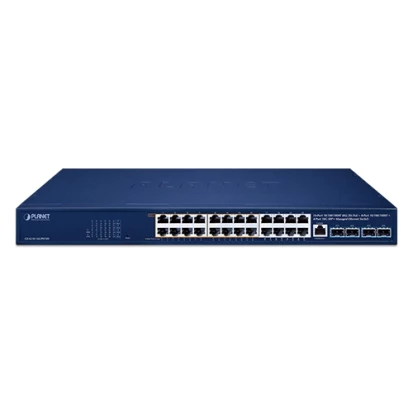

GS-4210-16UP8T4X
Planet
SKU: 57926200
Managed Layer 2 Ethernet Switch with 24x10/100/1000Base-T with 16xPoE ports, 4x10GBase-SR/LR SFP+ ports, 1xCOM, 100..240VAC, 0..50C Operating Temperature
Price on request
Available on order
Available on order
Ethernet
10/100/1000 Mbit/s
24
10 Gbit SFP+ Ports
4
PoE 10/100/1000 Mbit/s
16
Switch Properties
MAC Table Size
16000
Max. Number of VLANs
256
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, SNTP, TFTP, ARP, DHCP Option 66/67/82, IGMP Snooping v1/v2/v3, IGMP Querier
Reservation protocols
ERPS, MSTP, STP, RSTP
Security Protocols
HTTPS, RADIUS, TACACS+, SSH2
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3bz for 2.5GBaseX
System Power Input
Input Voltage AC
100..240 V
Construction
Mounting Configuration
19" Rackmount
Dimensions and weight
Width
400 mm
Depth
207 mm
Height
44 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3.2 kg
Gross Weight
4.2 kg
Ethernet
10/100/1000 Mbit/s
24
10 Gbit SFP+ Ports
4
PoE 10/100/1000 Mbit/s
16
Switch Properties
MAC Table Size
16000
Max. Number of VLANs
256
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, SNTP, TFTP, ARP, DHCP Option 66/67/82, IGMP Snooping v1/v2/v3, IGMP Querier
Reservation protocols
ERPS, MSTP, STP, RSTP
Security Protocols
HTTPS, RADIUS, TACACS+, SSH2
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3bz for 2.5GBaseX
System Power Input
Input Voltage AC
100..240 V
Construction
Mounting Configuration
19" Rackmount
Dimensions and weight
Width
400 mm
Depth
207 mm
Height
44 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3.2 kg
Gross Weight
4.2 kg
Ethernet
10/100/1000 Mbit/s
24
10 Gbit SFP+ Ports
4
PoE 10/100/1000 Mbit/s
16
Switch Properties
MAC Table Size
16000
Max. Number of VLANs
256
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, SNTP, TFTP, ARP, DHCP Option 66/67/82, IGMP Snooping v1/v2/v3, IGMP Querier
Reservation protocols
ERPS, MSTP, STP, RSTP
Security Protocols
HTTPS, RADIUS, TACACS+, SSH2
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3bz for 2.5GBaseX
System Power Input
Input Voltage AC
100..240 V
Construction
Mounting Configuration
19" Rackmount
Dimensions and weight
Width
400 mm
Depth
207 mm
Height
44 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3.2 kg
Gross Weight
4.2 kg
Ethernet
10/100/1000 Mbit/s
24
10 Gbit SFP+ Ports
4
PoE 10/100/1000 Mbit/s
16
Switch Properties
MAC Table Size
16000
Max. Number of VLANs
256
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, SNTP, TFTP, ARP, DHCP Option 66/67/82, IGMP Snooping v1/v2/v3, IGMP Querier
Reservation protocols
ERPS, MSTP, STP, RSTP
Security Protocols
HTTPS, RADIUS, TACACS+, SSH2
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3bz for 2.5GBaseX
System Power Input
Input Voltage AC
100..240 V
Construction
Mounting Configuration
19" Rackmount
Dimensions and weight
Width
400 mm
Depth
207 mm
Height
44 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3.2 kg
Gross Weight
4.2 kg
