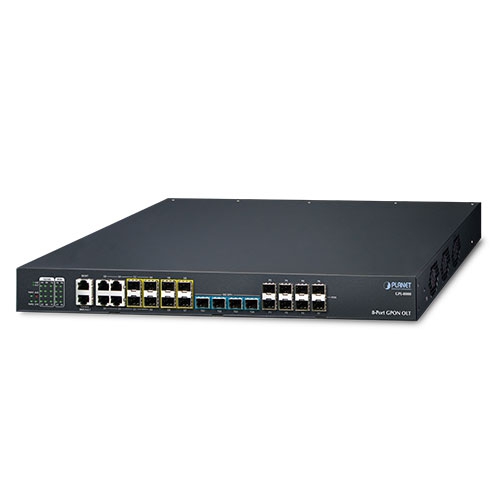

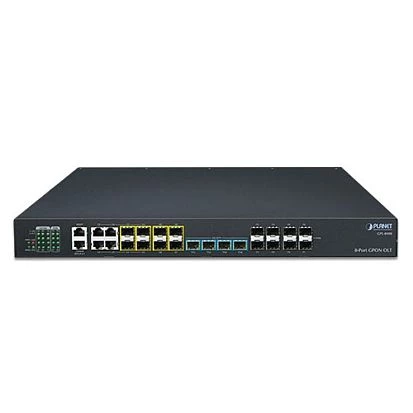

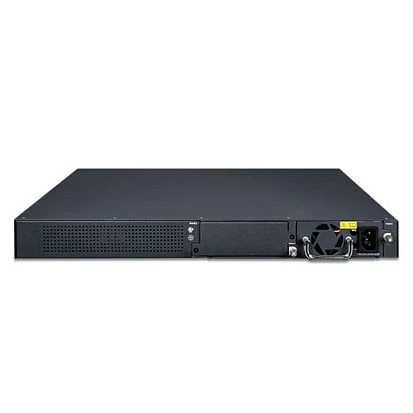

GPL-8000
Planet
SKU: 57553100
8-Port GPON OLT with 4xGigabit TP/SFP Combo Ports, 4x1000BASE-X SFP Ports, 4x10G SFP Ports, Redundant Power (ITU-T G.984/G.988, 1024 ONUs, L3 Static Routing, 100..240VAC single Power Supply, dual-AC or AC+DC supported), Operating Temperature 0..50C
Price on request
Available
Available
Ethernet
10/100 Mbit/s
1
10/100/1000 Mbit/s
4
SFP 1000 Mbit Ports
8
10 Gbit SFP+ Ports
4
Fiber
Transmission Range
20 km
Length Wave RX
1310 nm
Length Wave TX
1490 nm
Switch Properties
Jumbo Frame Size
2 kB
Supported Protocols
Protocol Layer 3
Static Routing, RIP V1/V2, OSPF
Managment Protocols
HTTP, LLDP, Syslog, Telnet, SNTP Client, DHCP, NTP, GVRP, TFTP, LACP, FTP, IGMP Snooping v1/v2/v3, IGMP Querier, SNMPv1/v2c
Reservation protocols
MSTP, STP, RSTP
Security Protocols
RADIUS, SSL, TACACS+, SSH2
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet
System Power Input
Input Voltage DC
36..72 V
Input Voltage AC
100..240 V
Dimensions and weight
Width
442.5 mm
Depth
300 mm
Height
44.6 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-90%
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
5.5 kg
Gross Weight
6.5 kg
