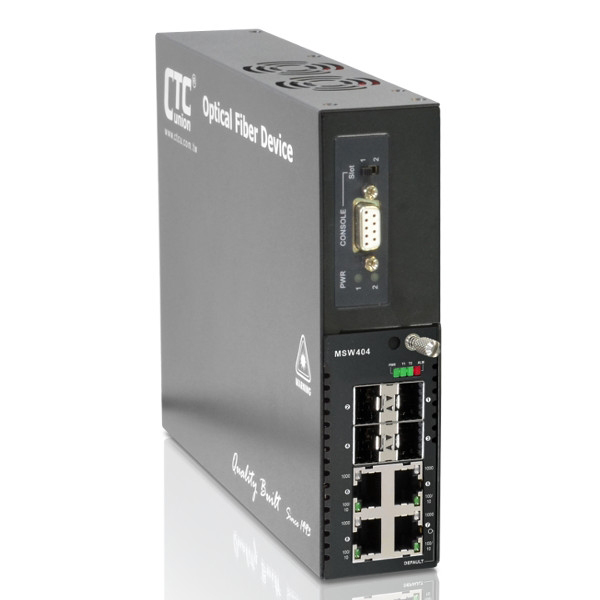

FRM220-MSW404
CTC Union
SKU: 56108600
Managed Gigabit Carrier L2 Ethernet Switch with 4x 1000Base-T and 4x 1000Base-X SFP Ports, OAM function, 100-240VAC, 18-72 VDC Input Power, 0..50C Operating Temperature
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
4
SFP 100/1000 Mbit/s Ports
4
Type 10/100/1000 Mbit/s
4xRJ-45
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, Telnet, NTP, SNTP
Reservation protocols
STP, RSTP
Security Protocols
HTTPS, SSH, RADIUS, TACACS+, IEEE 802.1X Network Access Control
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
LED / Controls
LED
Power LED, LAN LED
Setup of Operation Mode
Telnet, Console Port, Web-interface
System Power Input
Input Voltage DC
18..72 V
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..50 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Dimensions and weight
Width
168 mm
Depth
220 mm
Height
45 mm
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.2 kg
Gross Weight
0.4 kg
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
4
SFP 100/1000 Mbit/s Ports
4
Type 10/100/1000 Mbit/s
4xRJ-45
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, Telnet, NTP, SNTP
Reservation protocols
STP, RSTP
Security Protocols
HTTPS, SSH, RADIUS, TACACS+, IEEE 802.1X Network Access Control
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
LED / Controls
LED
Power LED, LAN LED
Setup of Operation Mode
Telnet, Console Port, Web-interface
System Power Input
Input Voltage DC
18..72 V
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..50 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Dimensions and weight
Width
168 mm
Depth
220 mm
Height
45 mm
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.2 kg
Gross Weight
0.4 kg
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
4
SFP 100/1000 Mbit/s Ports
4
Type 10/100/1000 Mbit/s
4xRJ-45
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, Telnet, NTP, SNTP
Reservation protocols
STP, RSTP
Security Protocols
HTTPS, SSH, RADIUS, TACACS+, IEEE 802.1X Network Access Control
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
LED / Controls
LED
Power LED, LAN LED
Setup of Operation Mode
Telnet, Console Port, Web-interface
System Power Input
Input Voltage DC
18..72 V
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..50 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Dimensions and weight
Width
168 mm
Depth
220 mm
Height
45 mm
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.2 kg
Gross Weight
0.4 kg
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
4
SFP 100/1000 Mbit/s Ports
4
Type 10/100/1000 Mbit/s
4xRJ-45
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, Telnet, NTP, SNTP
Reservation protocols
STP, RSTP
Security Protocols
HTTPS, SSH, RADIUS, TACACS+, IEEE 802.1X Network Access Control
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
LED / Controls
LED
Power LED, LAN LED
Setup of Operation Mode
Telnet, Console Port, Web-interface
System Power Input
Input Voltage DC
18..72 V
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..50 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Dimensions and weight
Width
168 mm
Depth
220 mm
Height
45 mm
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.2 kg
Gross Weight
0.4 kg
Documentation
Documentation
Documentation
Documentation
Get a Quote
