FR-32R/DIN

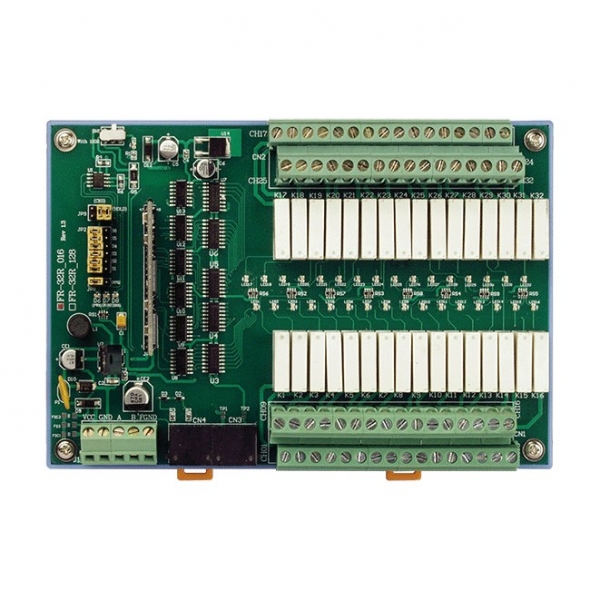

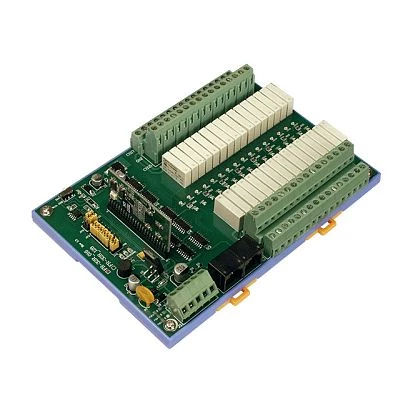

FR-32R/DIN

ICP DAS
SKU: 05837700
32 Channel isolated relay output Module
Price on request
Available
Available

Construction
Construction Chassis
Open Frame
Mounting Configuration
DIN-Rail mount
Industrial Interfaces
Frnet Port
1
Digital Output
Total channels of digital output
32
Type
Electromagnitic relay
Relay (Form A)
32
Contact rating of relay (Form A)
5A@270V AC, 5A@125V DC
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
173 mm
Depth
30 mm
Height
117 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.08 kg
Gross Weight
0.1 kg
