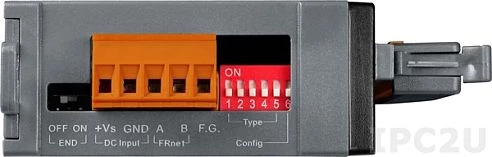

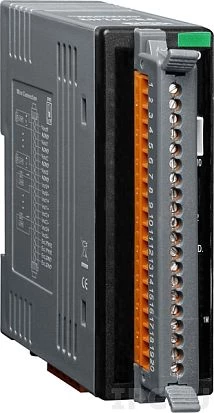

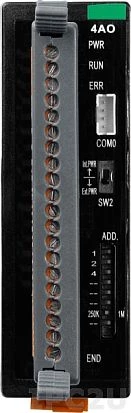

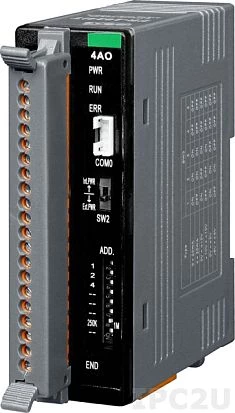

FR-2024iT

FR-2024iT

ICP DAS
SKU: 06038500
4-channel Isolated Analog Output Module
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Industrial Interfaces
Frnet Port
1
Analog Output
Channels of analog input
4
DAC Bit Rate
12 Bit
Voltage range
0...5 V, 0...10 V, +/-5 V, +/-10 V
Current range
0...20 mA, 4...20 mA
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
102 mm
Height
107 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.08 kg
Gross Weight
0.1 kg
