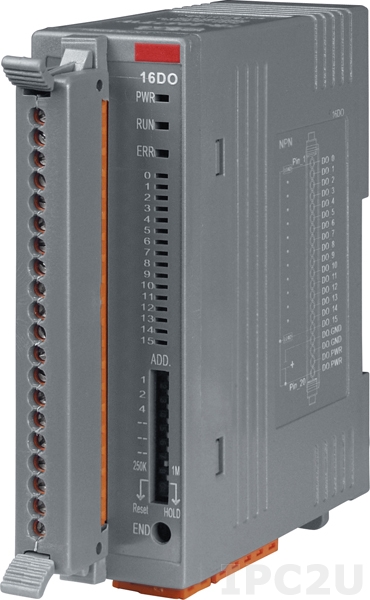

FR-2057TW

FR-2057TW

SKU: 05220200

16-channel Sink type Isolated High Current Output Module

Price on request

Construction

Construction Chassis

Plastic Chassis

Mounting Configuration

DIN-Rail mount

Industrial Interfaces

Frnet Port

1

Digital Output

Total channels of digital output

16

Type

Open collector

Sink/Source

Sink

Output voltage

5~30 V

Max. load current

250 mA

Connectors

Connectors

Screw Terminal

System Power Input

Input Voltage DC

10..30 V

Dimensions and weight

Width

33 mm

Depth

102 mm

Height

107 mm

Operating Conditions

Operating Temperature

-25..75 °C

Dimensions

Net Weight

0.08 kg

Gross Weight

0.26 kg
