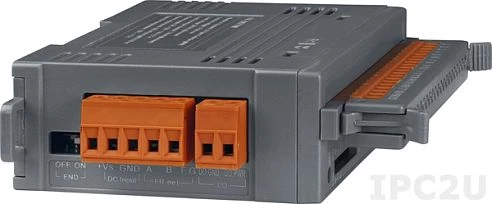

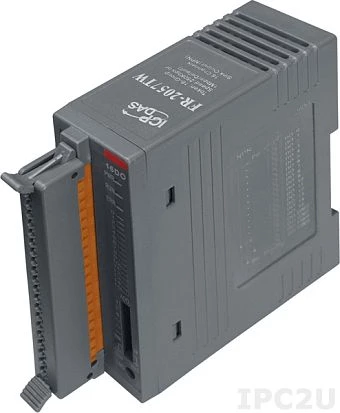

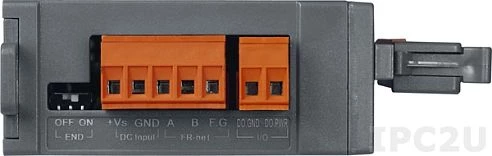

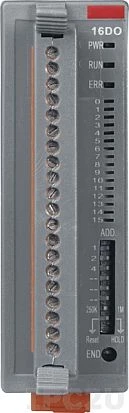

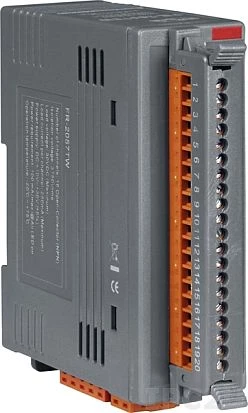

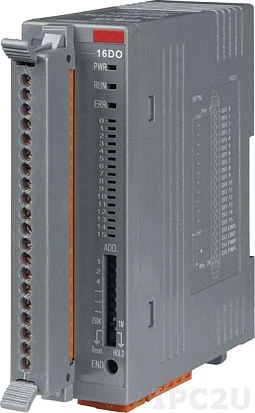

FR-2057iTW
ICP DAS
SKU: 09507100
FRnet I/O Module with 16-channel Isolated High Current DO (Sink, NPN, 30VDC, 250mA, Max) and Isolated Communication Line
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Industrial Interfaces
Frnet Port
1
Digital Output
Total channels of digital output
16
Type
Open collector
Sink/Source
Sink
Output voltage
5~30 V
Max. load current
250 mA
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
102 mm
Height
110 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.08 kg
Gross Weight
0.26 kg
