FR-2057

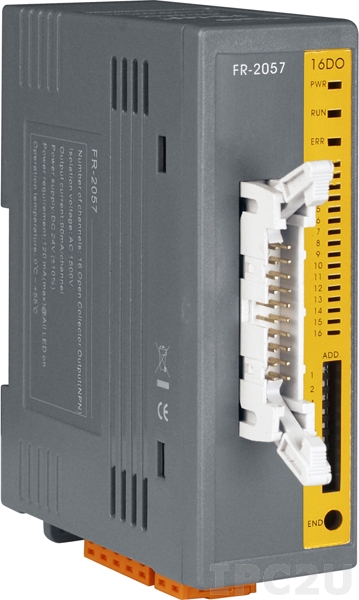

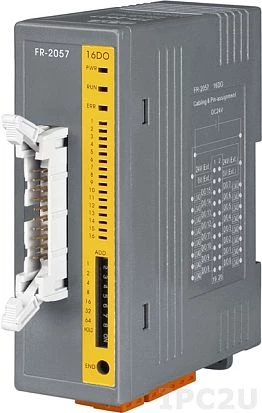

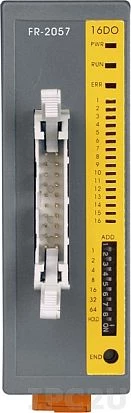

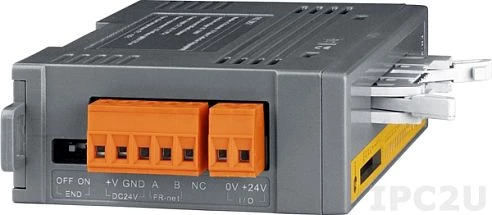

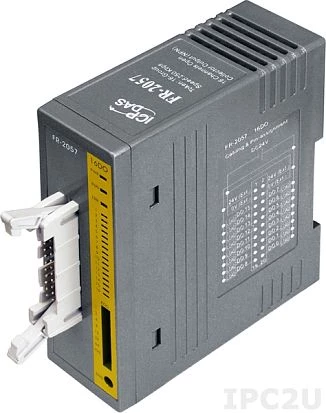

FR-2057

ICP DAS
SKU: 05219500
16-channel isolated digital output with 20-pin header
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Industrial Interfaces
Frnet Port
1
Digital Output
Total channels of digital output
16
Type
Open collector
Sink/Source
Sink
Output voltage
5~24 V
Max. load current
100 mA
Connectors
Connectors
Pin Header
System Power Input
Input Voltage DC
10..24 V
Dimensions and weight
Width
33 mm
Depth
102 mm
Height
107 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.08 kg
Gross Weight
0.1 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Industrial Interfaces
Frnet Port
1
Digital Output
Total channels of digital output
16
Type
Open collector
Sink/Source
Sink
Output voltage
5~24 V
Max. load current
100 mA
Connectors
Connectors
Pin Header
System Power Input
Input Voltage DC
10..24 V
Dimensions and weight
Width
33 mm
Depth
102 mm
Height
107 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.08 kg
Gross Weight
0.1 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Industrial Interfaces
Frnet Port
1
Digital Output
Total channels of digital output
16
Type
Open collector
Sink/Source
Sink
Output voltage
5~24 V
Max. load current
100 mA
Connectors
Connectors
Pin Header
System Power Input
Input Voltage DC
10..24 V
Dimensions and weight
Width
33 mm
Depth
102 mm
Height
107 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.08 kg
Gross Weight
0.1 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Industrial Interfaces
Frnet Port
1
Digital Output
Total channels of digital output
16
Type
Open collector
Sink/Source
Sink
Output voltage
5~24 V
Max. load current
100 mA
Connectors
Connectors
Pin Header
System Power Input
Input Voltage DC
10..24 V
Dimensions and weight
Width
33 mm
Depth
102 mm
Height
107 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.08 kg
Gross Weight
0.1 kg

Documentation
datasheet fr-2057 DataSheet
