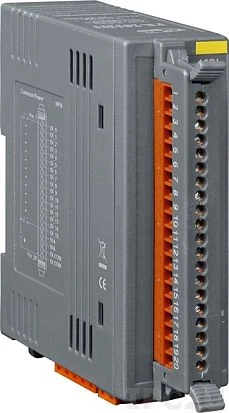

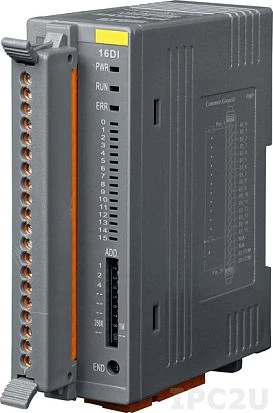

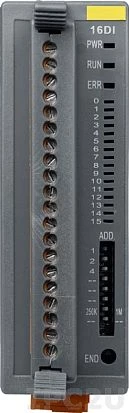

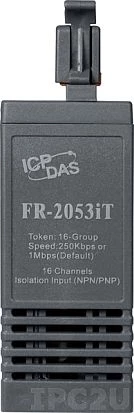

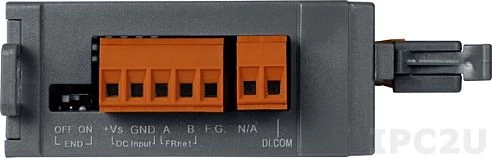

FR-2053iT
ICP DAS
SKU: 05764700
16-channel Sink/Source Type Isolated Digital Input Module With Isolated Communication line
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Industrial Interfaces
Frnet Port
1
Digital Input
Total channels of digital input
16
Type
Wet contact
Level of Logic "0"
0~11 V
Level of Logic "1"
19~30 V
Sink/Source
Sink, Source
Isolation of Digital Input
3750 V
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
102 mm
Height
107 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.25 kg
Gross Weight
0.25 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Industrial Interfaces
Frnet Port
1
Digital Input
Total channels of digital input
16
Type
Wet contact
Level of Logic "0"
0~11 V
Level of Logic "1"
19~30 V
Sink/Source
Sink, Source
Isolation of Digital Input
3750 V
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
102 mm
Height
107 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.25 kg
Gross Weight
0.25 kg
