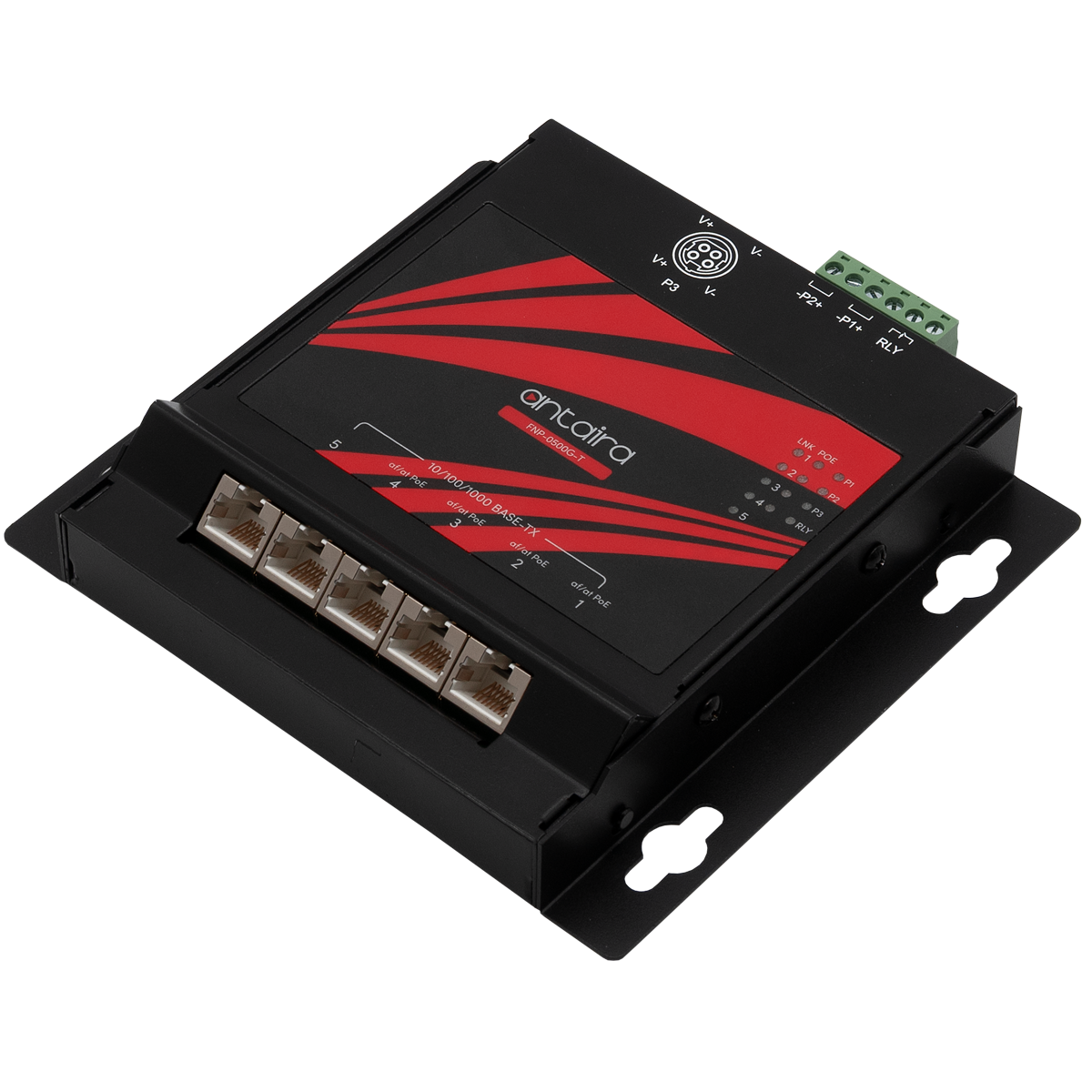

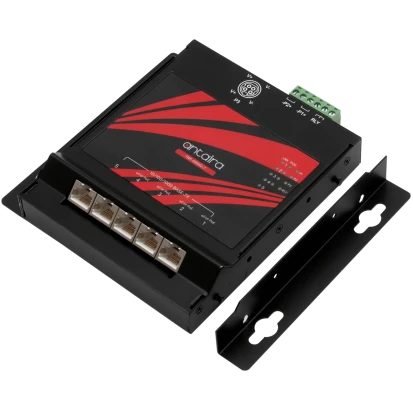

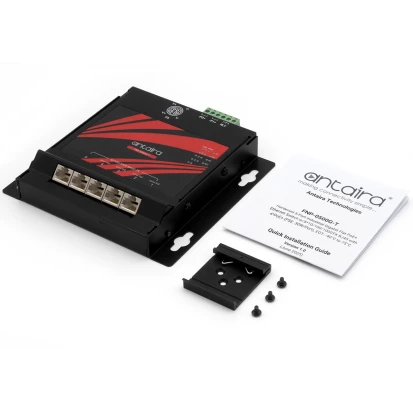

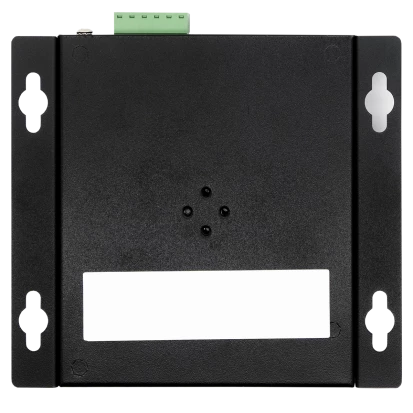

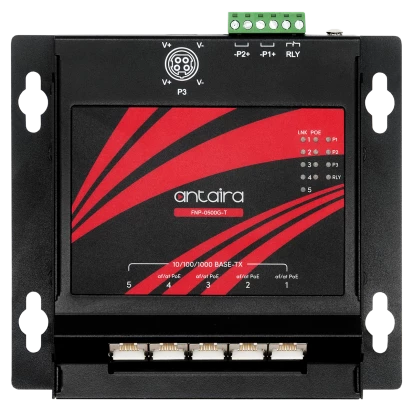

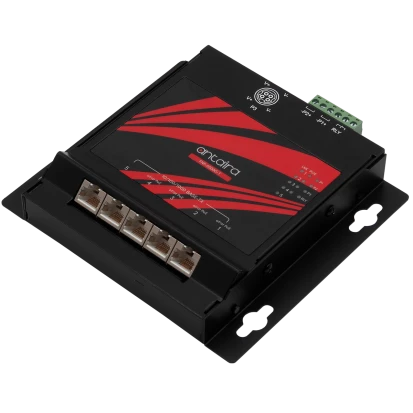

FNP-0500G-T
Antaira Technologies
SKU: 80206100
Industrial PoE+ Unmanaged Flat Ethernet Switch, 5x10/100/1000Base-TX with 4xPoE+, 48..56VDC, Operating Temperature -40..75 C
Price on request
Available
Available
Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
5
Type 10/100/1000 Mbit/s
RJ-45
PoE+ 10/100/1000 Mbit/s
4
Power Budget
30 W
Switch Properties
MAC Table Size
2000
Jumbo Frame Size
9 kB
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
48..56 V
Construction
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
120.6 mm
Depth
145 mm
Height
31.5 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
MTBF
454556 h
Standards and Certifications
Certifications
CE, FCC
EMI
FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, EN 55032, EN 55035
Safety
UL 60950-1, EN 62368-1 (LVD)
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.45 kg
Gross Weight
0.5 kg
