ET-7060

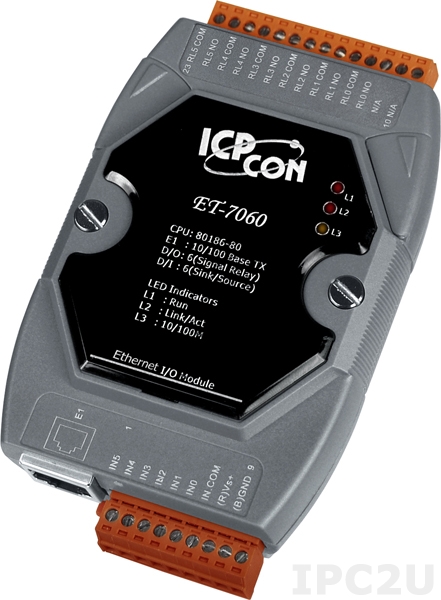

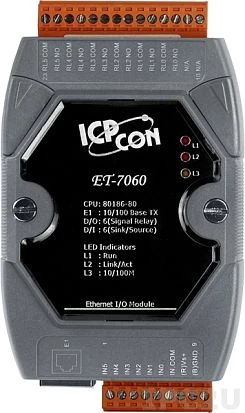

ET-7060 Ethernet I/O Module with 6x Wet Contact Input Channel, 6x Relay Output, 32 Bit Counter, Modbus/TCP, Modbus/UDP, RJ45 Ethernet, Web Interface The ET-7060 is an Ethernet I/O module that has six digital channels for wet contacts as inputs and six electromagnetic relays as outputs. It can be programmed, controlled and monitored via Ethernet and a built-in web server from a central instance such as an embedded PC or server. The Ethernet I/O module is a compact and robust Web HMI that serves as an interface in industrial environments between control servers and external devices such as sensors and operators. For high operational reliability, it has general optical isolation for overvoltages up to 3000VDC, which does not include isolation between individual channels. EMS protection for the Ethernet I/O module includes 2kV for radio frequency noise (ETS) and 0.5kV for overvoltage and 4kV for static discharge (ESD) at individual terminals. As a counter on the six input channels, the ET-7060 Ethernet I/O module uses a 32-bit counter with a frequency of 500Hz. The output relays switch with a maximum delay of 10ms and support a charge voltage of 250VAC or 24VDC with a maximum current of 5A. For easy and convenient configuration, the ET-7060 provides the user with a web interface that can be password protected. Support for protocols such as Modbus/TCP and Modbus/UDP enables integration into complex master/slave systems in industrial environments, for example, making the Ethernet I/O module equally suitable for large-scale automation and for singular use in engineering control.
