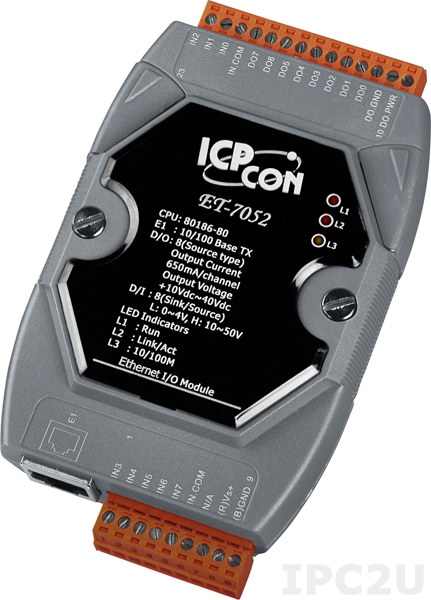

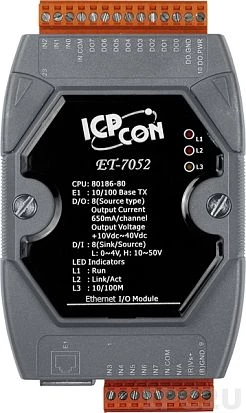

ET-7052

ET-7052

ICP DAS
SKU: 05059800
8-channel Isolated Source Type Open Collector Output and 8-channel Isolated Digital Input Module with 32-bit Counters, RoHS
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
10/100 Mbit/s
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave
Digital Input
Total channels of digital input
8
Type
Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Sink/Source
Sink, Source
Counter
500Hz, 32 bit
Digital Output
Total channels of digital output
8
Type
Open collector
Sink/Source
Source
Output voltage
10~40 V
Max. load current
650 mA
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
10/100 Mbit/s
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave
Digital Input
Total channels of digital input
8
Type
Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Sink/Source
Sink, Source
Counter
500Hz, 32 bit
Digital Output
Total channels of digital output
8
Type
Open collector
Sink/Source
Source
Output voltage
10~40 V
Max. load current
650 mA
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
10/100 Mbit/s
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave
Digital Input
Total channels of digital input
8
Type
Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Sink/Source
Sink, Source
Counter
500Hz, 32 bit
Digital Output
Total channels of digital output
8
Type
Open collector
Sink/Source
Source
Output voltage
10~40 V
Max. load current
650 mA
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
10/100 Mbit/s
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave
Digital Input
Total channels of digital input
8
Type
Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Sink/Source
Sink, Source
Counter
500Hz, 32 bit
Digital Output
Total channels of digital output
8
Type
Open collector
Sink/Source
Source
Output voltage
10~40 V
Max. load current
650 mA
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
Documentation
Manual (P)ET-7052_(P)ET-7252_datasheet ET-7052,PET-7052,PET-7052-48V_datasheet datasheet et-7052_pet-7052 Manual et7000_et7200_register_table_v110
