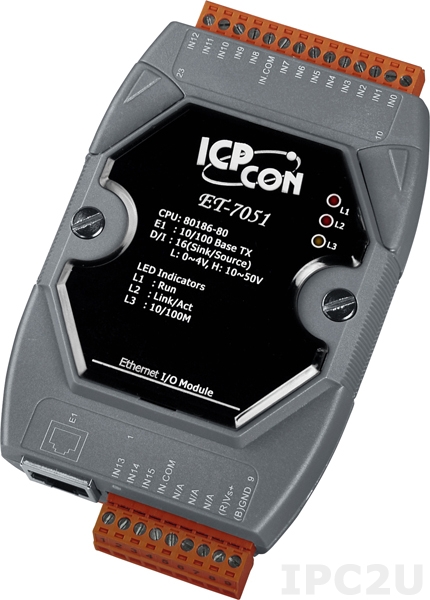

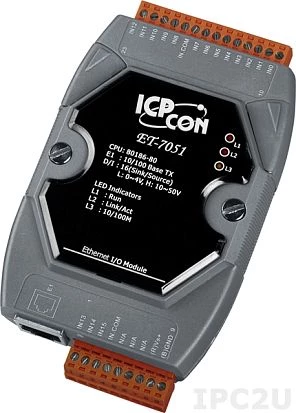

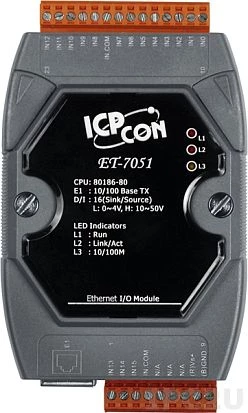

ET-7051

ET-7051

ICP DAS
SKU: 05059700
16-channel Isolated Digital Input Module with 32-bit Counters
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
10/100 Mbit/s
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave
Digital Input
Total channels of digital input
16
Type
Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Sink/Source
Sink, Source
Counter
500Hz, 32 bit
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
