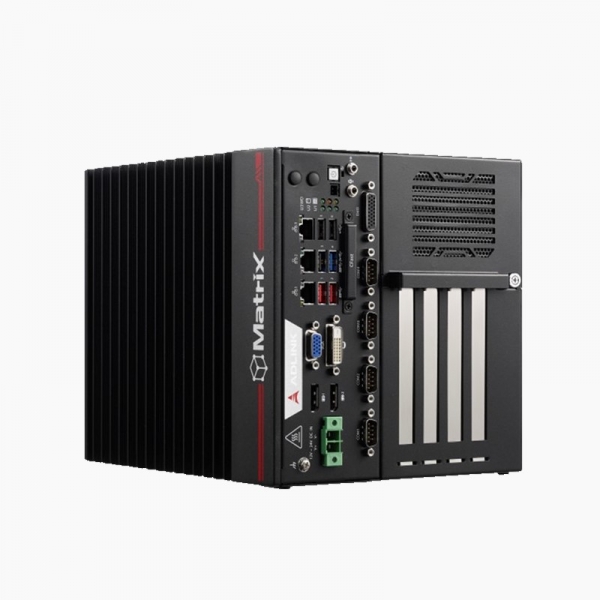

EOS-i614A-P2200

EOS-i614A-P2200

ADLink
SKU: 09224000
Embedded vision system, Intel i7-9700E, 4GB RAM, 2xCamera Link, 2xGbE ports, DVI-I, 2xUSB 3.0, 4xUSB2.0, 32DI/32DO, 2 x 2.5" SATA, CFAST,10...30V DC
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
CPU
СPU Generation/Family
Coffee Lake Refresh
Processor Installed
Intel Core i7-9700E
Max CPU frequency
4.4 GHz
Memory
Form-factor
DDR4
Default on Board Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
NVIDIA Quadro P2200 GDDR5 5GB
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219
10/100/1000 Mbit/s
3
Interfaces
COM Total
4
RS-232/422/485
2
USB Total
7
USB 2.0
4
USB v3.x
3
Drive interfaces
CFast Slots
1
Storage Cage
Number Of Cage External
4
2.5" Cage Intenal
4
Installed drive
Drive Type
SSD
1st Storage Capacity
512 GB
Extension Slots
Total
6
PCI Express x16
1
M.2
1
Mini-PCIe/Mini Card
1
PCI
1
Connectors
Connectors
4xDB9, 3xRJ45 Ethernet, 7xUSB, Mic In, Line Out, DC input (terminal block)
System Power Input
Input Voltage DC
12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
280 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Ubuntu 18.04 LTS
Dimensions and weight
Width
206 mm
Height
240 mm
Depth
210 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
Operating: 5 Grms, 5-500 Hz, 3 axes (w/2.5" SSD/CFast) Operating: 0.5 Grms, 5-500 Hz, 3 axes (w/ HDD)
Shock
Operating: 50 Grms, half sine 11ms duration (w/ 2.5" SSD/CFast)
Standards and Certifications
Certifications
CE, FCC Class A, EN61000-6-4, CB
Dimensions
Gross Weight
3 kg
